PRODUCT SHOWCASE - DRAIN COVERS

Exterior Drain Covers

Drains are essential—your drainage grates don’t need to be on show.

Standard grates interrupt good design, catch debris, and can become a slip or trip risk. HIDE Drain Covers are a drain cover system designed to replace traditional grated drain and drainage grate solutions—so the drain access stays functional, but visually discreet.

Each cover is a tile drain insert: set your own tile, stone, paver or wet-pour concrete into the lid, so the outdoor drainage cover matches the surrounding finish. The result is a cover for outdoor drain access that looks intentional in premium hardscapes.

Designed to blend in: the HIDE inlay lid becomes part of the surface, not a separate grate. It’s a practical choice for anyone wanting a cleaner look than drains and grates in high-visibility outdoor areas.

Safe, sleek, and built to last: engineered for external use using 316L marine grade stainless steel, the flush-fit finish supports safer foot traffic and a cleaner detailing outcome. For the trade, it’s a dependable solution when you want the drain to perform—without compromising the finished surface.

Why Choose HIDE?

• Seamless finish using your chosen surface material (tile/stone/paver/concrete)

• Slip-resistant underfoot with a flush fit (reduces trip edges)

• Suits standard 90mm and 100mm drainage connections

• Depth options for common outdoor tile and stone thicknesses

• UV stable + corrosion resistant for harsh exterior conditions

• Ideal for patios, pool surrounds, paths, gardens and entertainment zones

• Made in Australia for Australian conditions

Whether you're a homeowner, builder, or landscape designer, HIDE Drain Covers are the finishing touch that ties your entire outdoor space together—without compromise.

Don’t let drains ruin your vision. HIDE them.

Hidden drainage solutions:

Typical uses include any area where you want an outdoor drain cover without the look of a drain grate.

The specific type of drain and its application will depend on the location, purpose, and local building codes. Here are some typical applications for HIDE Drain Covers:

• Patios, stairs and steps
• Balconies and rooftop terraces
• Outdoor entertainment areas
• Sports Courts and walkways
• Gardens and landscaped areas
• Pool Decks and retaining walls
• Artificial grassed courtyards
• Wet-pour concrete kits available. Click here to view

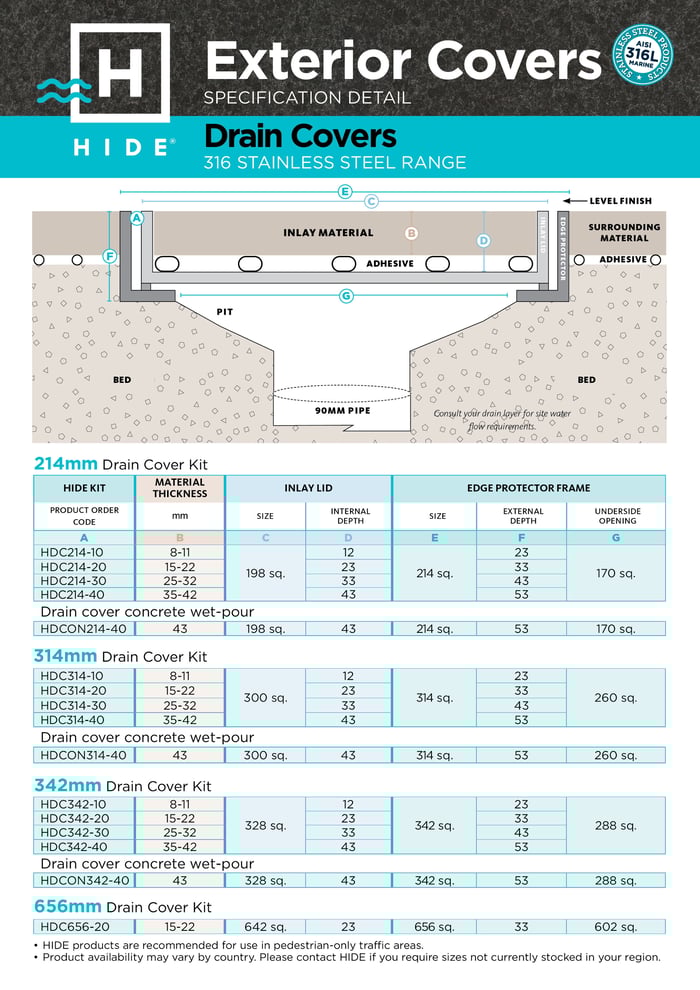

Choose the right drain cover size and depth to suit your inlay material and site drainage requirements.

Key Features

• Discreet key access—no visible “grate” styling
• 7mm clearance on all sides for reliable surface water capture
• Secure locking system using HIDE’s proven keyway safety access
• Ability for the 342mm Drain Cover to be compatible with the Everhard Series 300 Pit
• The 314mm Drain Cover is compatible with the Everhard 314 Rainwater Pit
• Concrete compatible models in popular 214, 314 & 342mm sizings
• 20-year stainless steel warranty
• Conforms to Australian Pool Safety Standards
• Cannot be lifted without the safety key
• Designed for dependable long-term exterior use

214mm Drain Cover

Choose between 4 popular depths to suit your chosen material, 10mm, 20mm, 30mm & 40mm.

A compact floor drain cover option where you want a neat finish without a visible grate.

2 different sizes to fit your drainage needs, with 5mm clearance on all sides.
342mm Drain Cover compatible with the  Everhard Series 300 Pit, and 314mm compatible with the Everhard 314mm Rainwater Pit.

 HIDE covers are designed to withstand the elements, offering unparalleled longevity and resistance to corrosion.
Unlike internal drain covers, HIDE is constructed from premium-quality, durable 316 Stainless Steel for external use.

656mm Drain Cover

20mm depth to suit your chosen inlay material.

Built for larger surface water demands—this outdoor drainage cover helps you conceal big drain openings while keeping access straightforward.

5mm clearance on all sides to allow water flow, with this ample clearance rest assured that the water will drain effortlessly.
