PRODUCT SHOWCASE - LINEAR DRAIN COVER RANGE
Step into the mesmerising world of concealed Linear Drain Covers, where simplicity and functionality intertwine seamlessly.

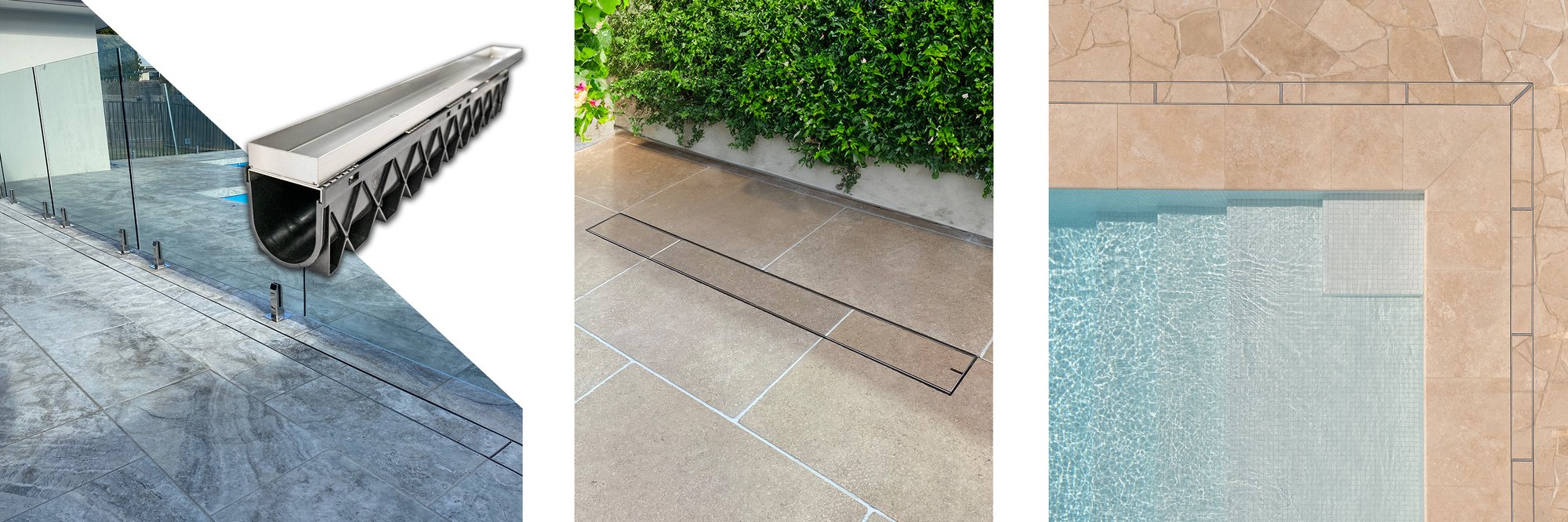

Tile Inlay Covers
Modular Tile insert covers at 1210mm length.
4 popular exterior stone/tile depths in two widths.
HIDE Tile Inlay Covers suit exterior stone thicknesses of up to 42mm; the Linear Drain Covers are compatible with two popular & readily available external drain channel systems.
HIDE offers the flexibility to customise your drain cover to enhance most landscape surfaces—the most inconspicuous and functional system for exterior surface water clearance. Installed to conceal your drainage system within the surface tiles or stone, match grout lines and tile patterns for a discreet quality finish.

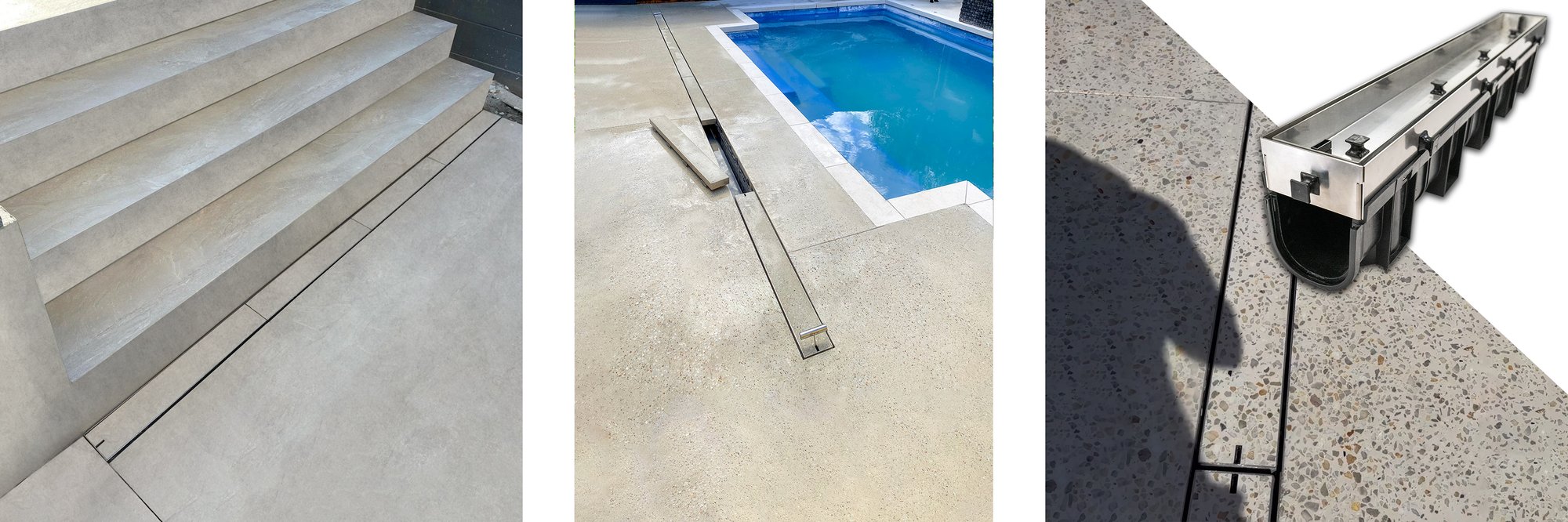

Concrete Infill Covers: Polished or Exposed Finish
Modular concrete Inlays at 1000mm in length, butt end on end for a continual cover.
The HIDE system has been designed to be compatible with the Everhard Easy Drain channel or a contractor-formed recess.
The most discreet, removable system for water clearance in an exterior poured surface.
Inconspicuous Drainage Every Time
HIDE Exclusive Features!
- Stainless steel 316 quality for long-term durability and strength of the surface finish.
- The cover is compatible with popular exterior drain channels, with many different depths and lengths.
- Deep channel options allow for a limited fall surface.
- Create a concealed, independent, removable drain cover as long as required.
- Invisible and discreet, only 2mm Stainless Steel exposure at surface level.
- Non-slip & Grate free.
- Less collection of surface sediment and foliage, making it easier to clean & remove.
- Installation is easy component assemble, increased versatility & flexibility.
Discreet & Durable

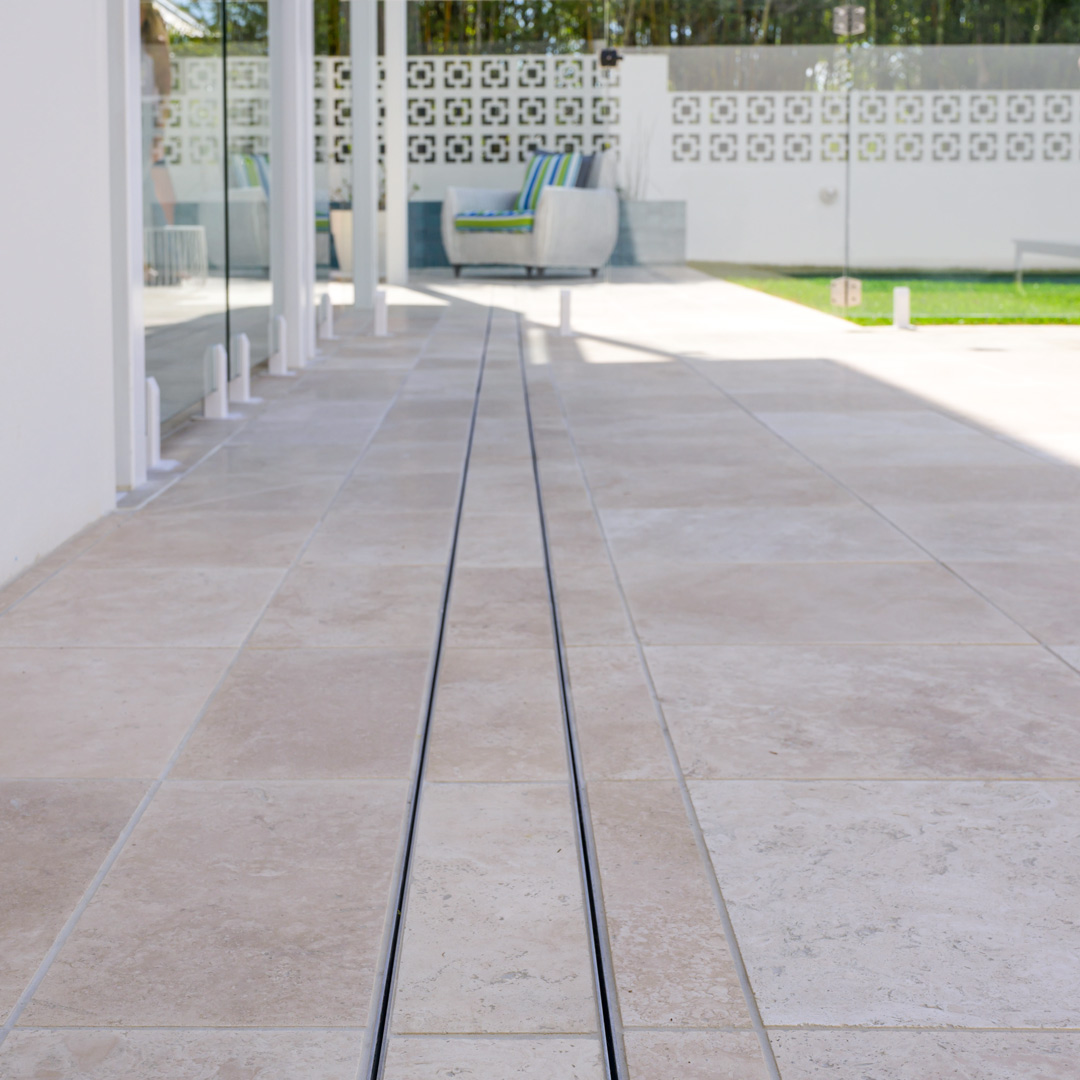

HIDE's Linear Drain Covers have been created to be hidden out of view underneath the tile, creating a water collection and flow away system with only 2mm of exposed channel tracking.
316 stainless steel is known for its exceptional durability and corrosion resistance; it ensures long-lasting performance.
A modern solution to creating the perfect outdoor living space without drain grates in sight.
Function & Form
The HIDE Linear Drain Cover seamlessly blends into your outdoor space, creating a sleek and uninterrupted surface while creating a solution to water drainage.
HIDE has created this first-of-its-kind exterior linear drain cover to eliminate other bulky drainage solutions, by creating a product that is both functional and slimline in design.
Versatile
With HIDE linear inlay drain covers, you can effortlessly blend them into their surroundings, ensuring the overall visual impact of the external area is elevated to new heights.
These covers are like chameleons, seamlessly adapting to any pool or landscaping design.
Factory prefabricated 2.4m corner kits ensure a quick and efficient installation. Through their ability to be cut down to any desirable length, you can now effortlessly match grout lines and tile patterns to each end of the HIDE Cover.
GETTING TO KNOW THE OPTIONS
Both Linear Drain systems create an inconspicuous and discreet fit-for-purpose high-water drainage solution for outdoor living spaces.
Tile Inlay
Tile Inlay - Linear Drain Cover
Compatible with two standard channel makes
The Tile Inlay cover is compatible with both Everhard and Reln drain channels, which are available in different lengths and depths.
- Each modular length is 1210mm
- Select depth to suit your chosen stone/tile
- Suits 12mm, 20mm, 30mm and 40mm inlay thickness
Concrete Infill
Concrete Infill - Linear Drain Cover
Compatible with Everhard Drain Channel
The Concrete Linear Drain Covers are designed for exposed aggregate, polished concrete and liquid limestone.
- Each modular length is 1000mm
- The cover is 40mm deep for wet-pour concrete applications
- The only fit-for-purpose external concrete linear drain cover on the market.
Safe practices and care required
NOTE:
- Suitable for PEDESTRIAN TRAFFIC only.
- No ACID / CHEMICAL WASH contact by the contractor or homeowner ever.
