PRODUCT SHOWCASE - DRAIN COVERS

Transform your outdoor area with HIDE's cutting-edge exterior drainage solutions, elevating your hardscape to new heights.

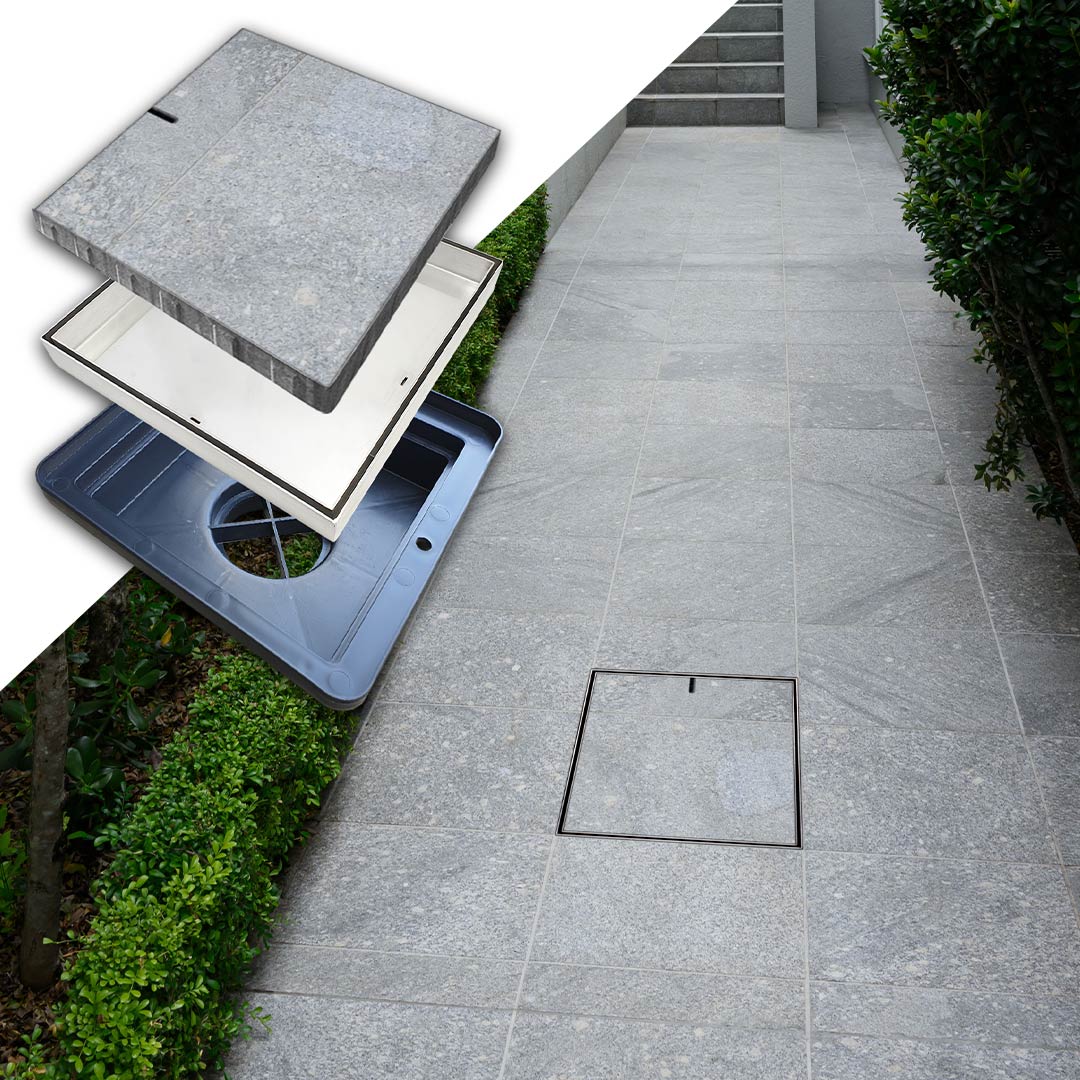

Drain-Cover-grey-tile
Drain-cover-agg
drain-cover-656

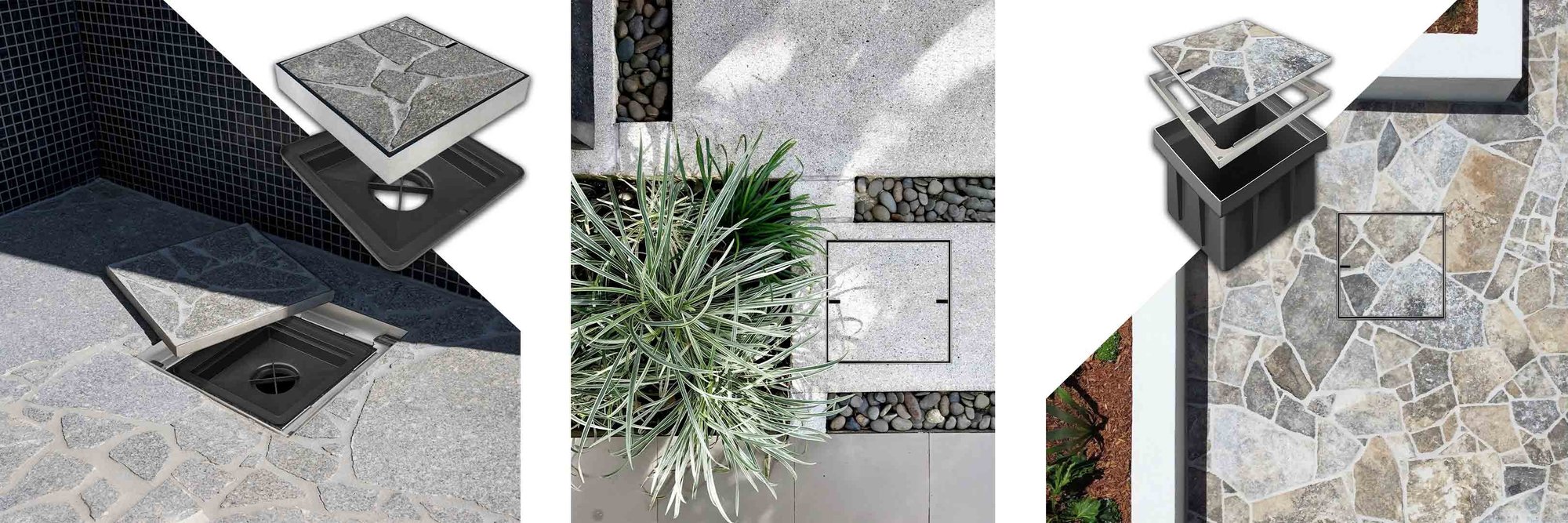

Exterior Drain Covers

Drainage solutions made easy

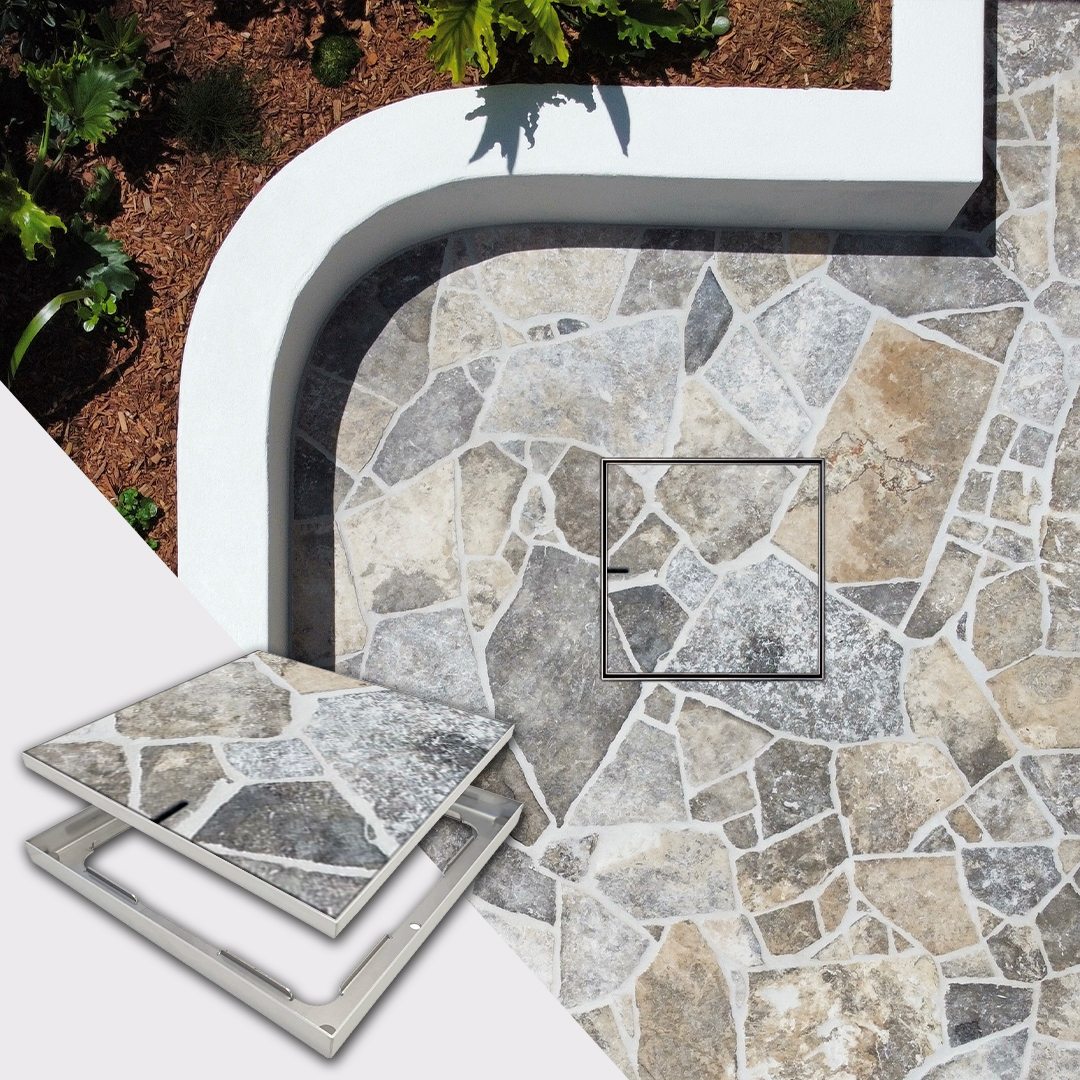

Choose from a variety of HIDE Drain Covers with two different sizes and four depths to suit popular stone and tile thicknesses! HIDE Drain Covers have been created to cover any unsightly external drainage points.

HIDE's popular 12.5" patio Drain Covers come in four depths to suit all your hardscaping needs. There is also a large 26" Drain Cover in two depths 0.8" and 1.2". The 12.5" model is also available for wet-pour concrete! What more could you ask for?

The HIDE Drain Cover can be used in most outdoor areas, including patios, decks and pathways, while allowing for a water intake compatible with a standard 3.5" or 4" drainage network pipe, providing long-term durability with improved visual appeal.

Drain Covers allow for your chosen landscape material to seamlessly conceal the drain access by doing away with standard metal or plastic grates; they not only look amazing but provide superior safety and performance every time!

12.5" Drain Covers

Drain-cover-314

Choose between 4 popular depths to suit your chosen material, 0.4", 0.8", 1.2" & 1.6".

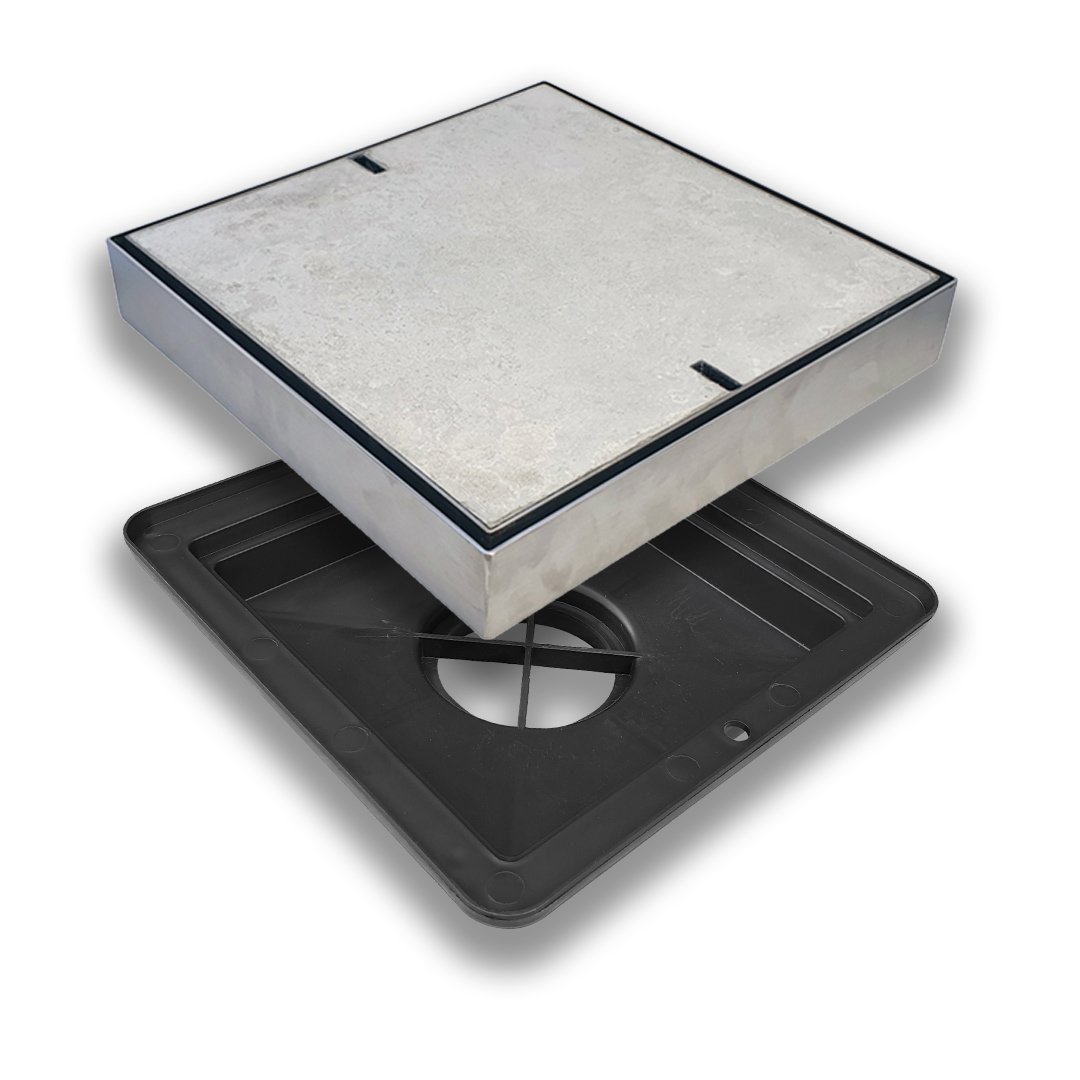

drain-with-concrete-inly

Install over a standard drain pit or form your own recess.

HIDE-Drain-complete

Manufactured from 316 marine grade stainless steel, with 0.3" clearance on all sides.

26" Drain Cover

drain-cover-656-grey-background-triangle

Choose between 2 depths - 0.8" & 1.2" to suit your chosen inlay material.

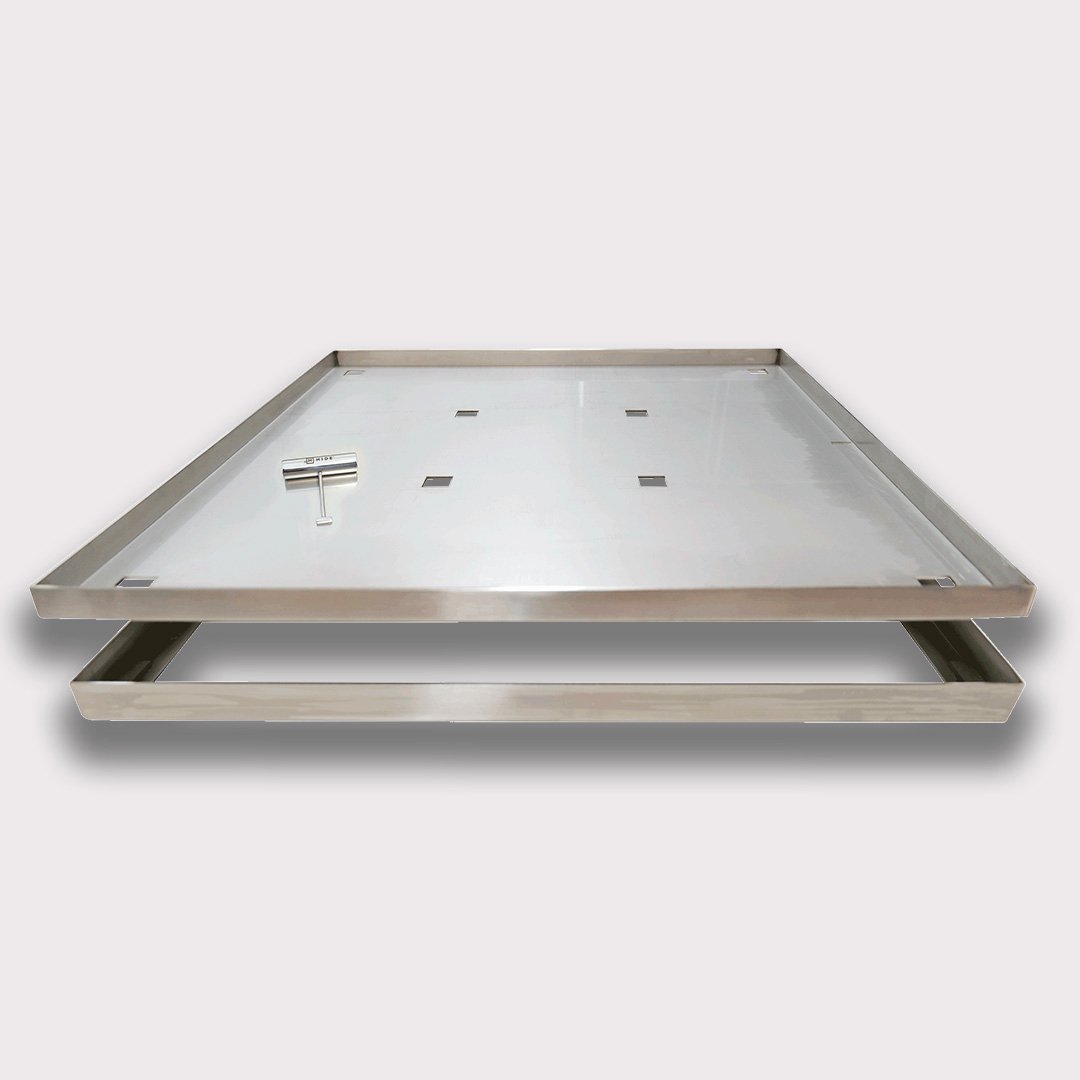

large 656 drain grey background

Created to solve large drainage needs, with this large drain cover you are able to hide even the biggest of drains in your external areas.

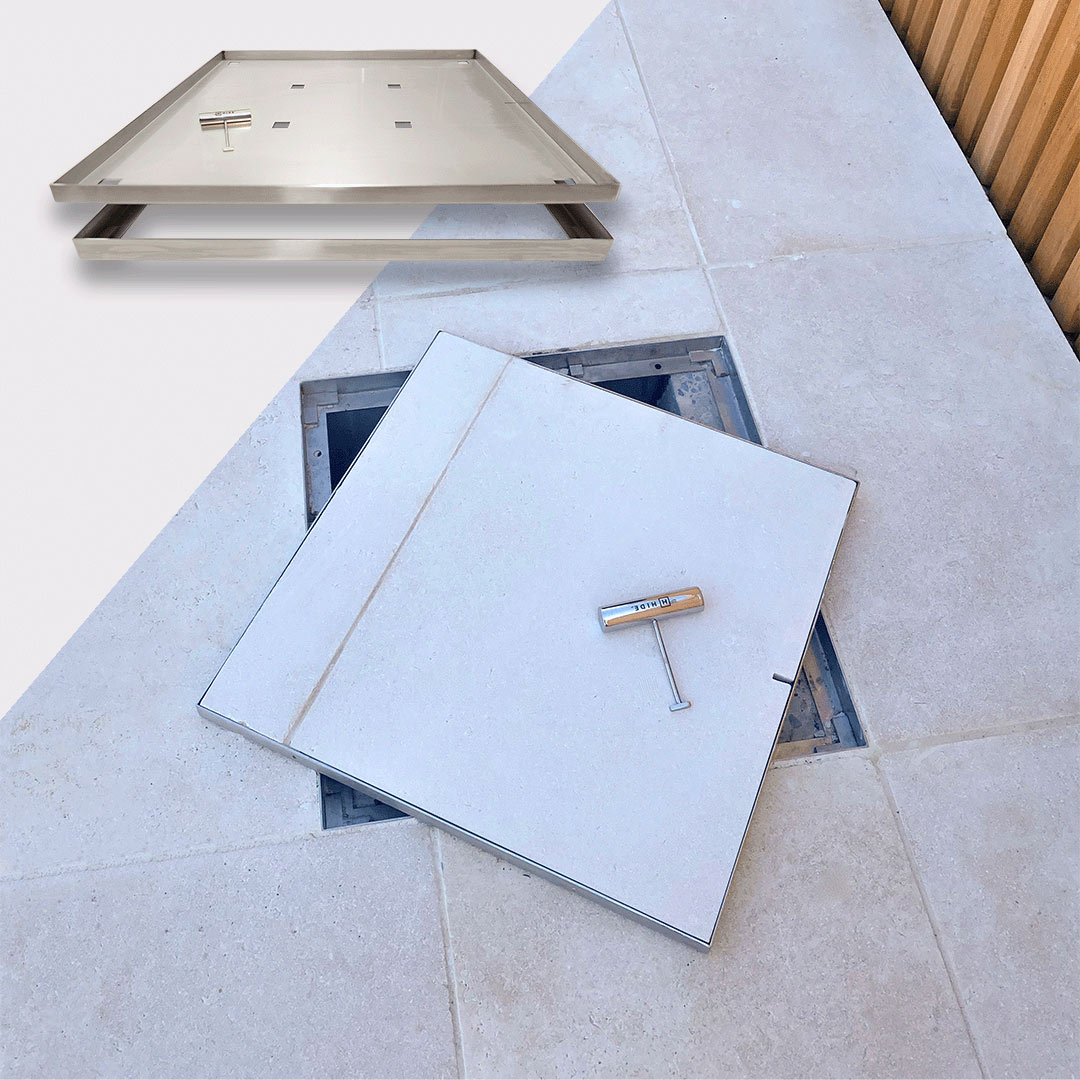

drain-cover-506-grey-background-triangle

0.3" clearance on all sides to allow surface water flow.

Concrete Drain Covers

after-image-1

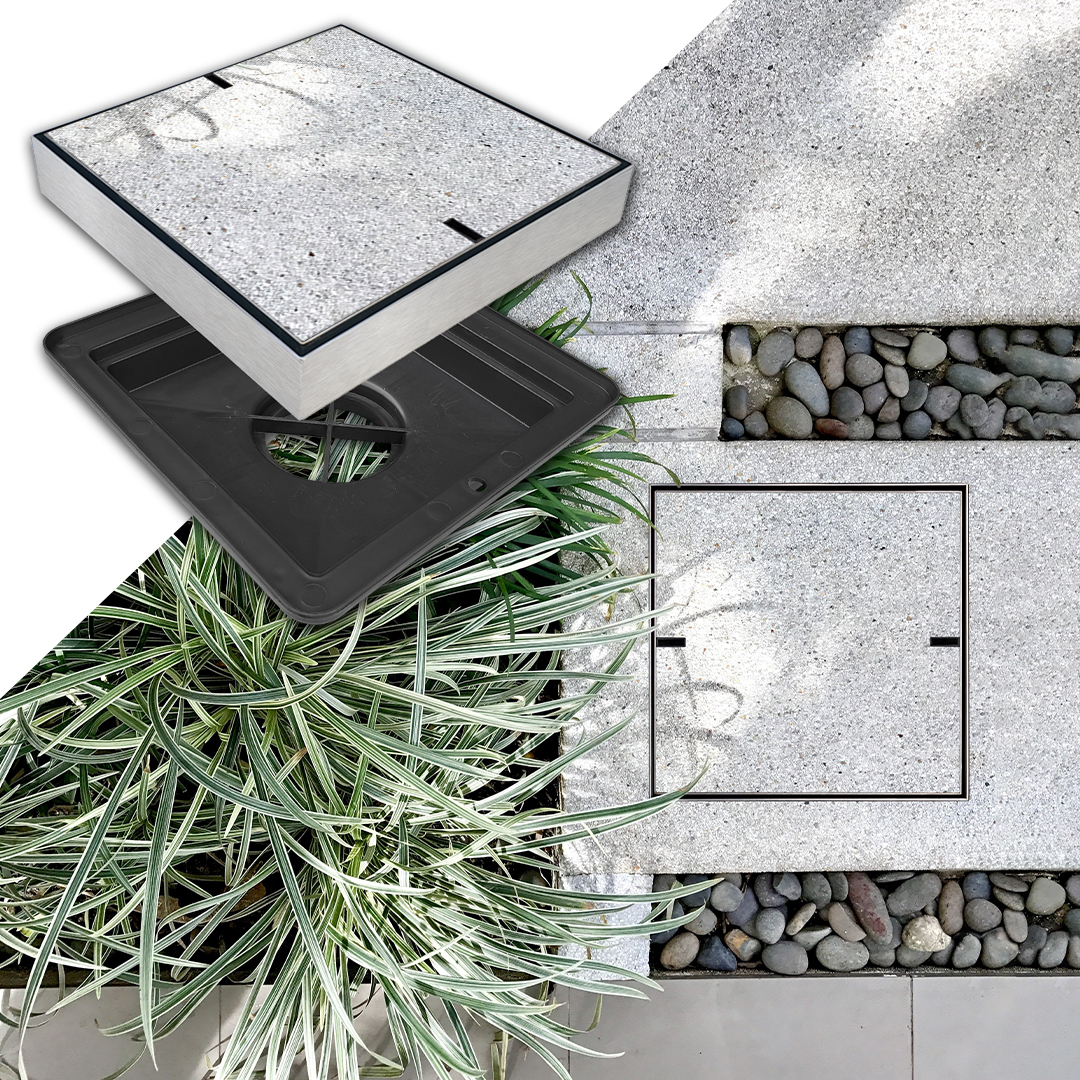

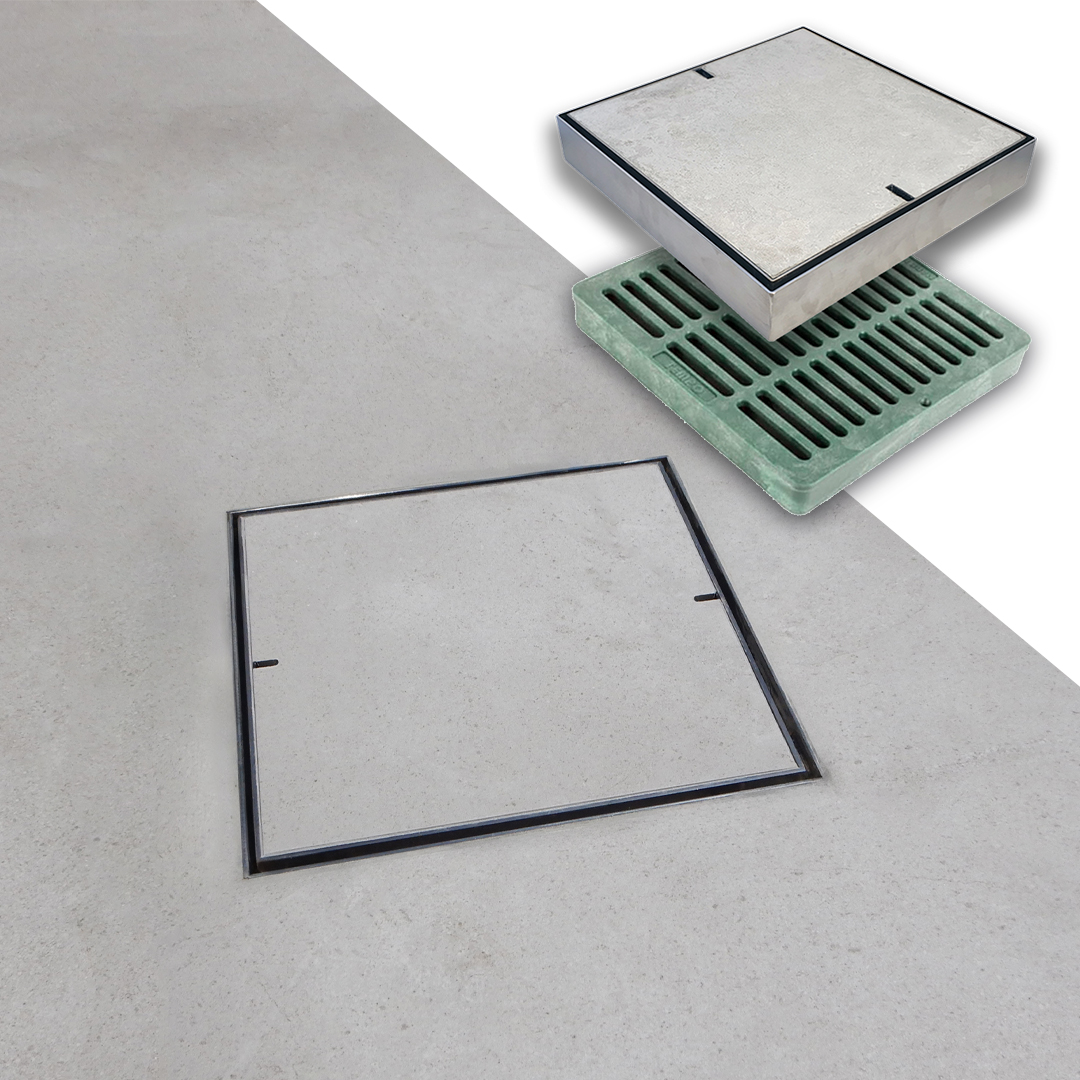

12.5" concrete compatible Drain Covers, suitable for wet-pour concrete installations, including exposed aggregate and stamped concrete.

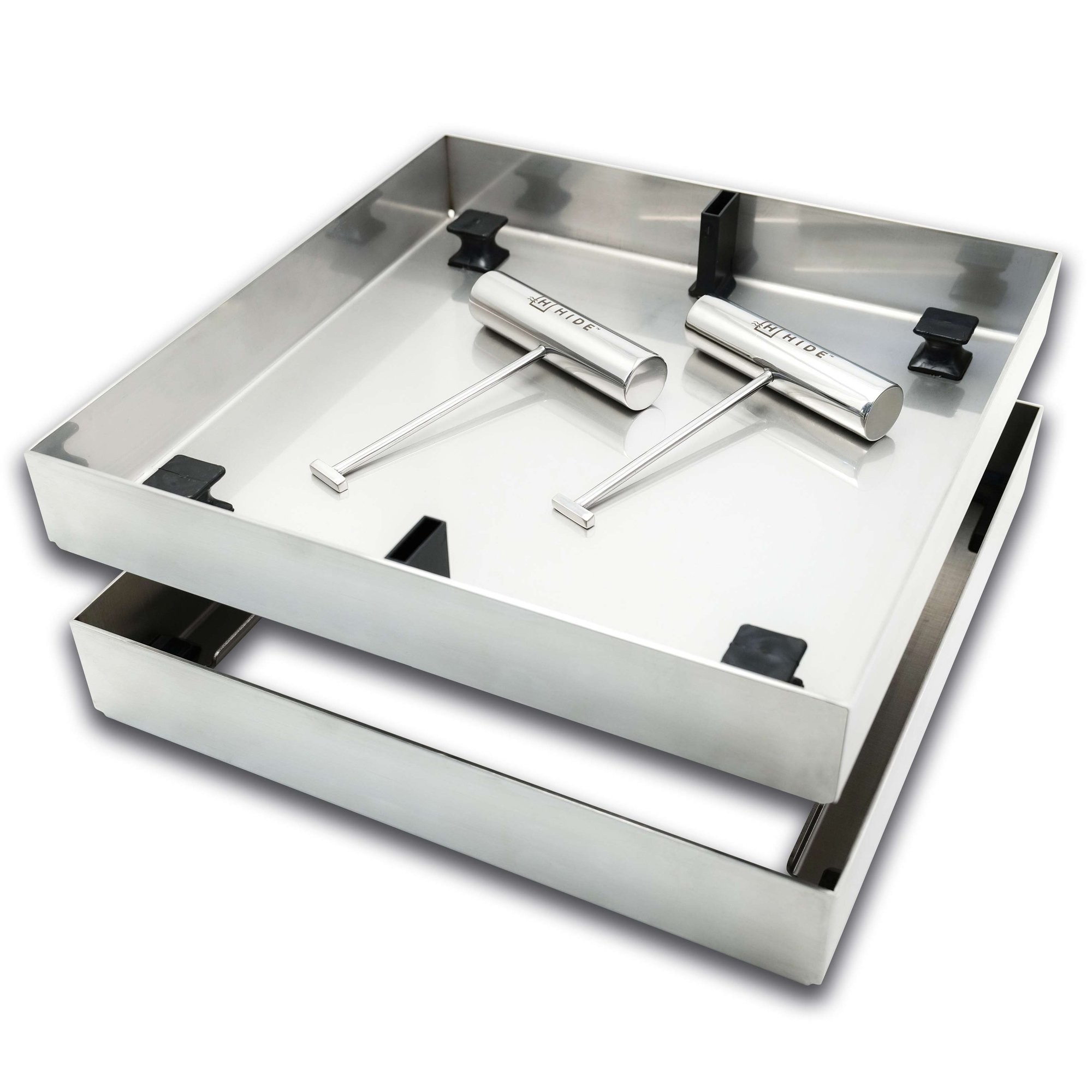

concrete hardware

The best depth for concrete applications is 1.6" for strength and weight.

Drain-cover-agg

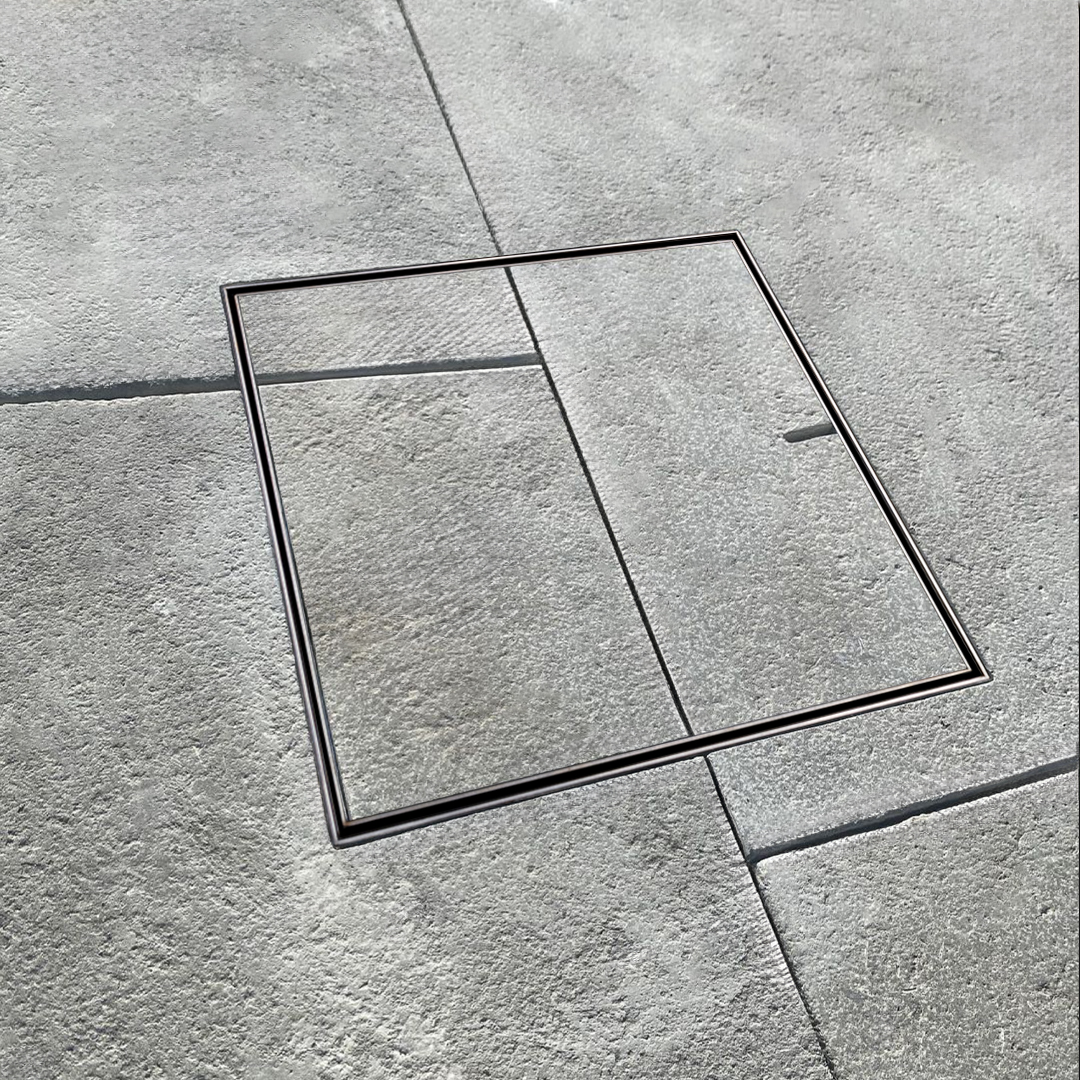

Hide any unsightly drains with HIDE Drain Covers, you won't even know it is there!

Key Features

  • Discrete and concealed key access - you won't even notice it's there!
  • 0.3" clearance on all sides for optimal drainage capabilities.
  • Inconspicuous locking system with HIDE's proven keyway safety access.
  • Concrete compatible models in popular 12.5" size at 1.6" depth.
  • 10-year stainless steel warranty

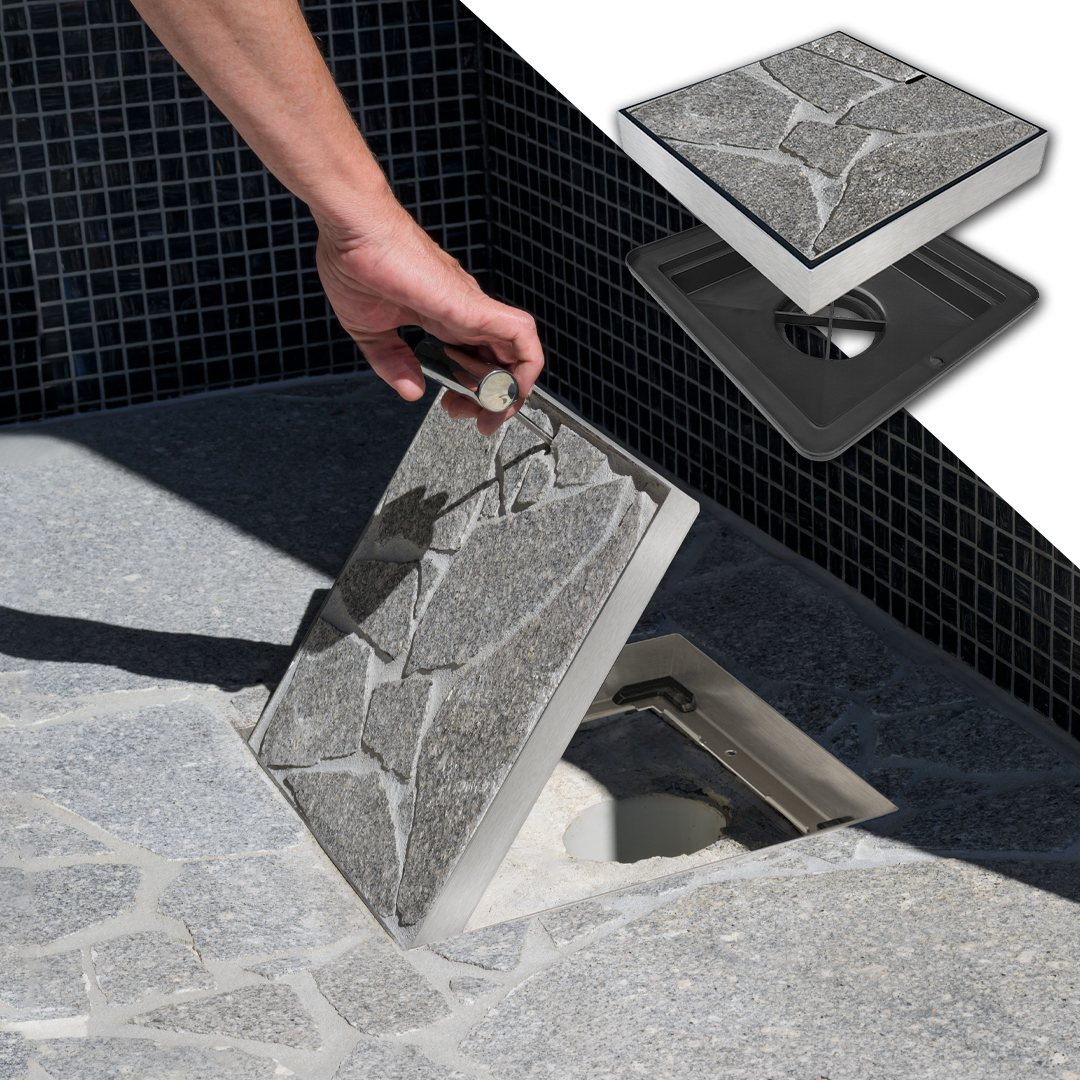

  • Child-resistant access and cannot be lifted without the safety key.
  • Safe, Seamless, Stunning.
New-Replacement-Safety-Key-Latest-Key-1
Drain-cover-with-bin

Discreet

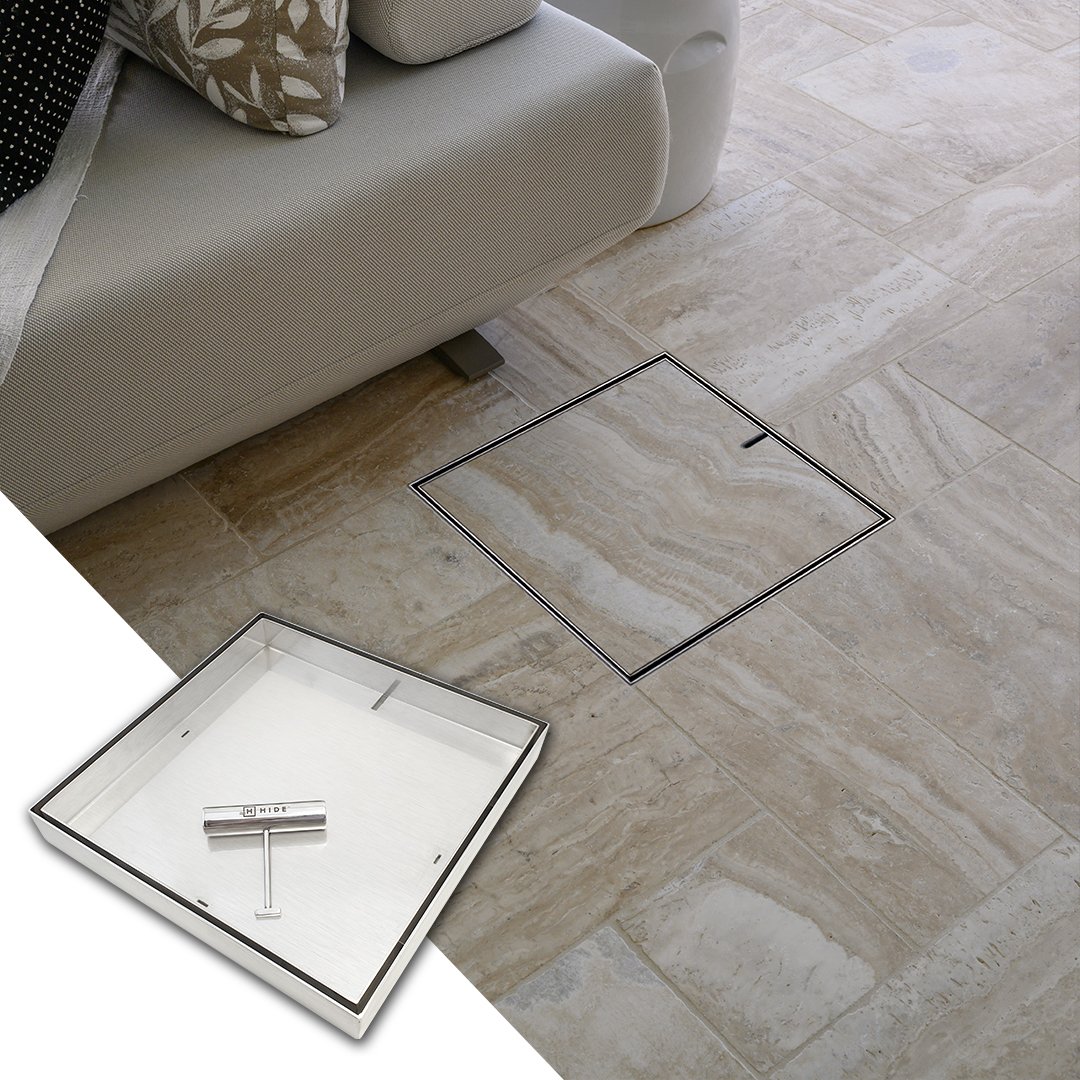

Introducing a contemporary solution for crafting an impeccable outdoor living area, where the drainage remains discreetly hidden from view.

drain-342

Fit-for-purpose

The HIDE Drain Cover range seamlessly blends into your outdoor space, creating a sleek and uninterrupted surface while remaining functional.

drain-with-edge-protector

Versatile

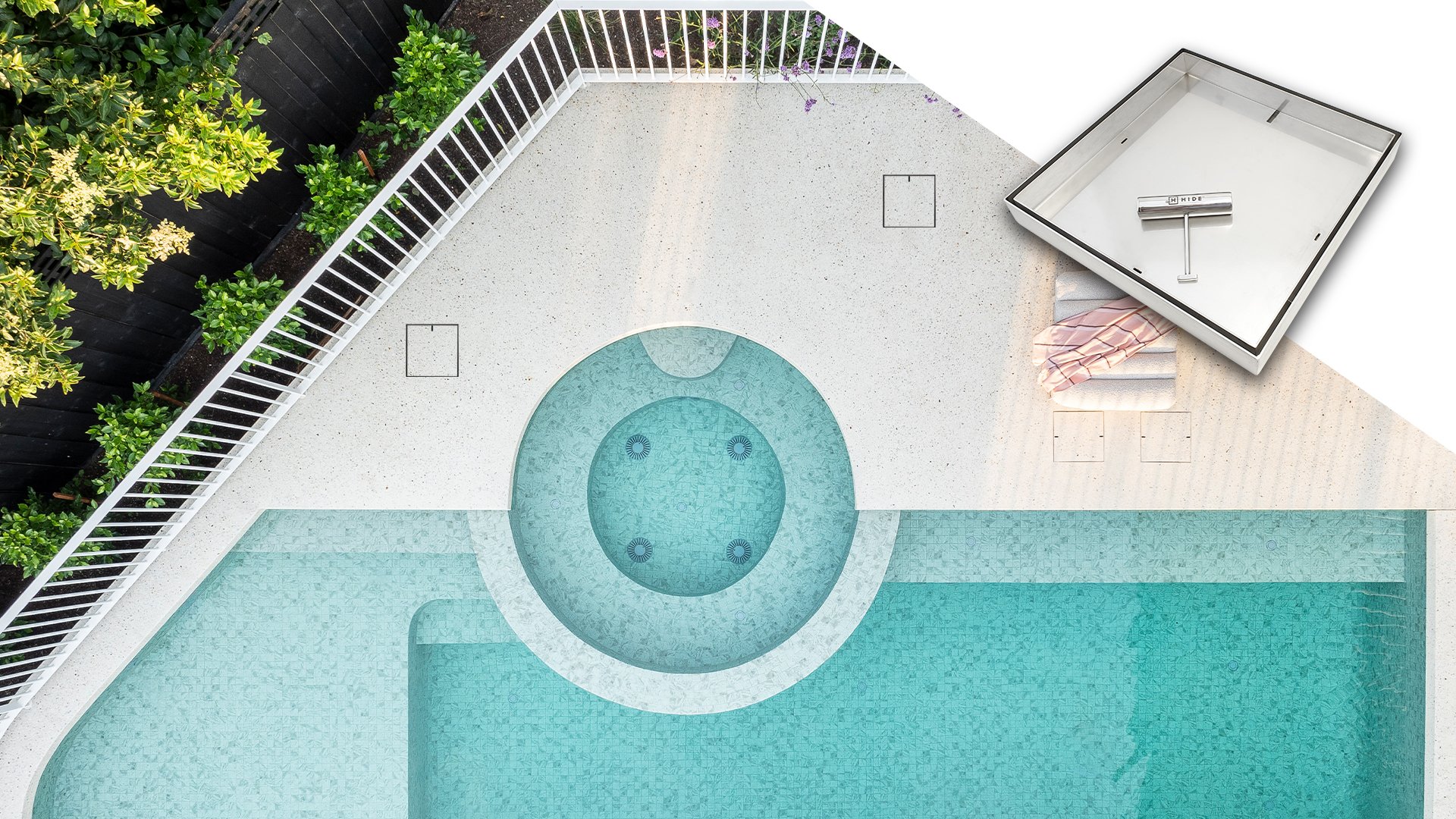

These versatile drainage covers effortlessly blend into any pool area or landscaping design, seamlessly adapting to the surroundings wherever they are needed.

Remove the grate and cover with HIDE!

* Please note that plastic pit/traps in illustrations are NOT included, must be bought separately.

Safe practices and care required

NOTE:

  • Suitable for PEDESTRIAN TRAFFIC only.
  • No ACID / CHEMICAL WASH contact by the contractor or homeowner ever.
Screenshot 2023-09-21 at 8.15.03 am
Screenshot 2023-09-18 at 10.08.37 am

Consider and plan installation before project commences

drainbefore

Consult your drain layer for site water flow and the most suitable sized HIDE drain cover and style.

drain step1

Fill the recess with a mortar bed, then push in the edge protector until it is positioned flush with the surface level. Remove the plastic drain grate, it's no longer needed.

drain step3

Looking good right?
Set out and plan the installation to suit the finished surface. It's an aesthetic thing.
