HIDE DRAIN COVER FLOW RATE GUIDE

Flow Rate Guide - Technical Explanation:

Disclaimer: The flow rate through a slot drain is influenced by the slot’s cross-sectional area and the hydraulic conditions, including the slope and roughness of the channel. In this estimation, we utilised standard flow rates for a known slot width and adjusted proportionally based on the given slot dimensions. For precise flow rate determination, it’s recommended to perform detailed hydraulic calculations that consider site-specific parameters or to consult with a drainage engineer.

The following Flow Rates are calculated and can be downloaded below:

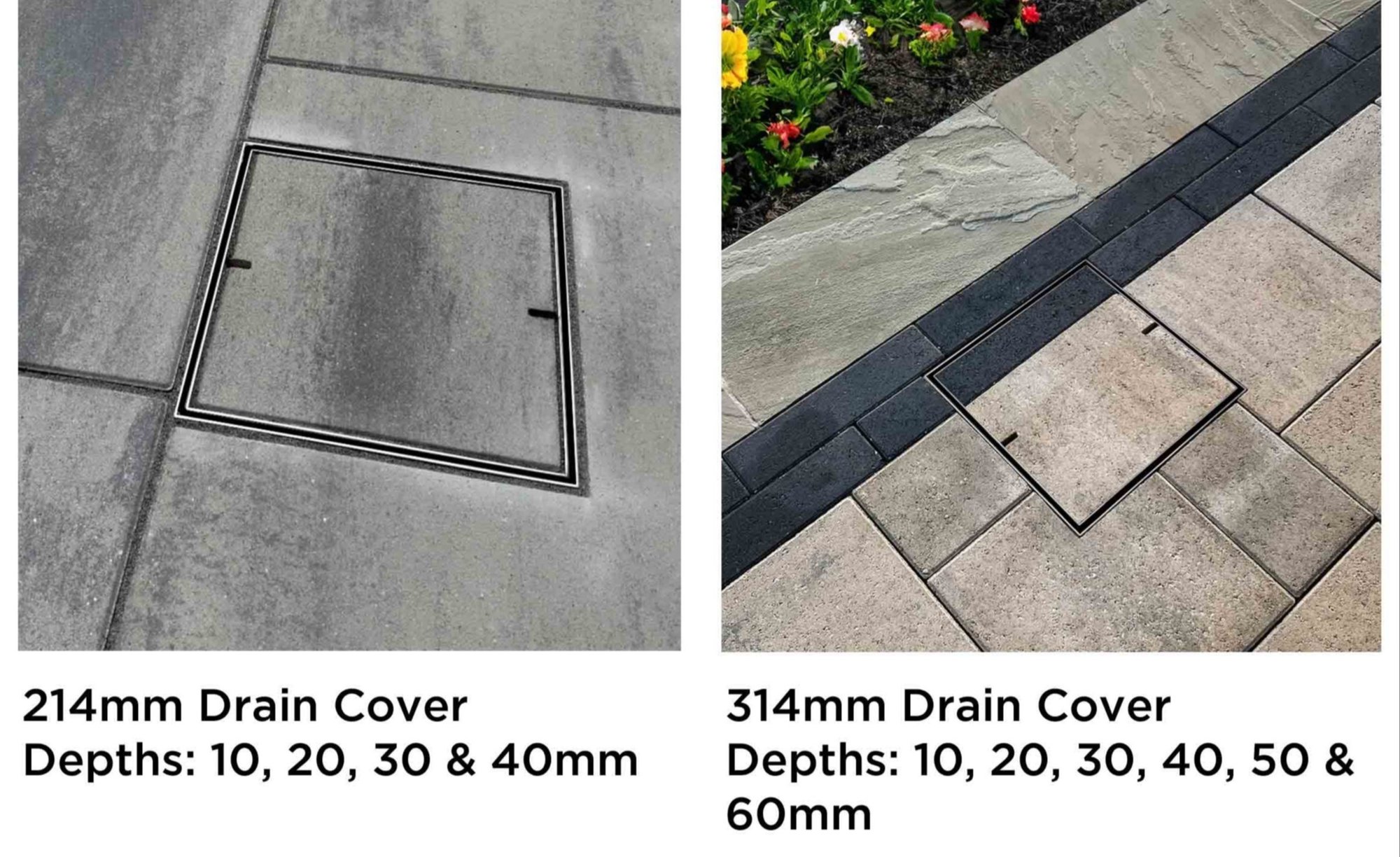

• 214mm Square Drain Cover
• 314mm Square Drain Cover

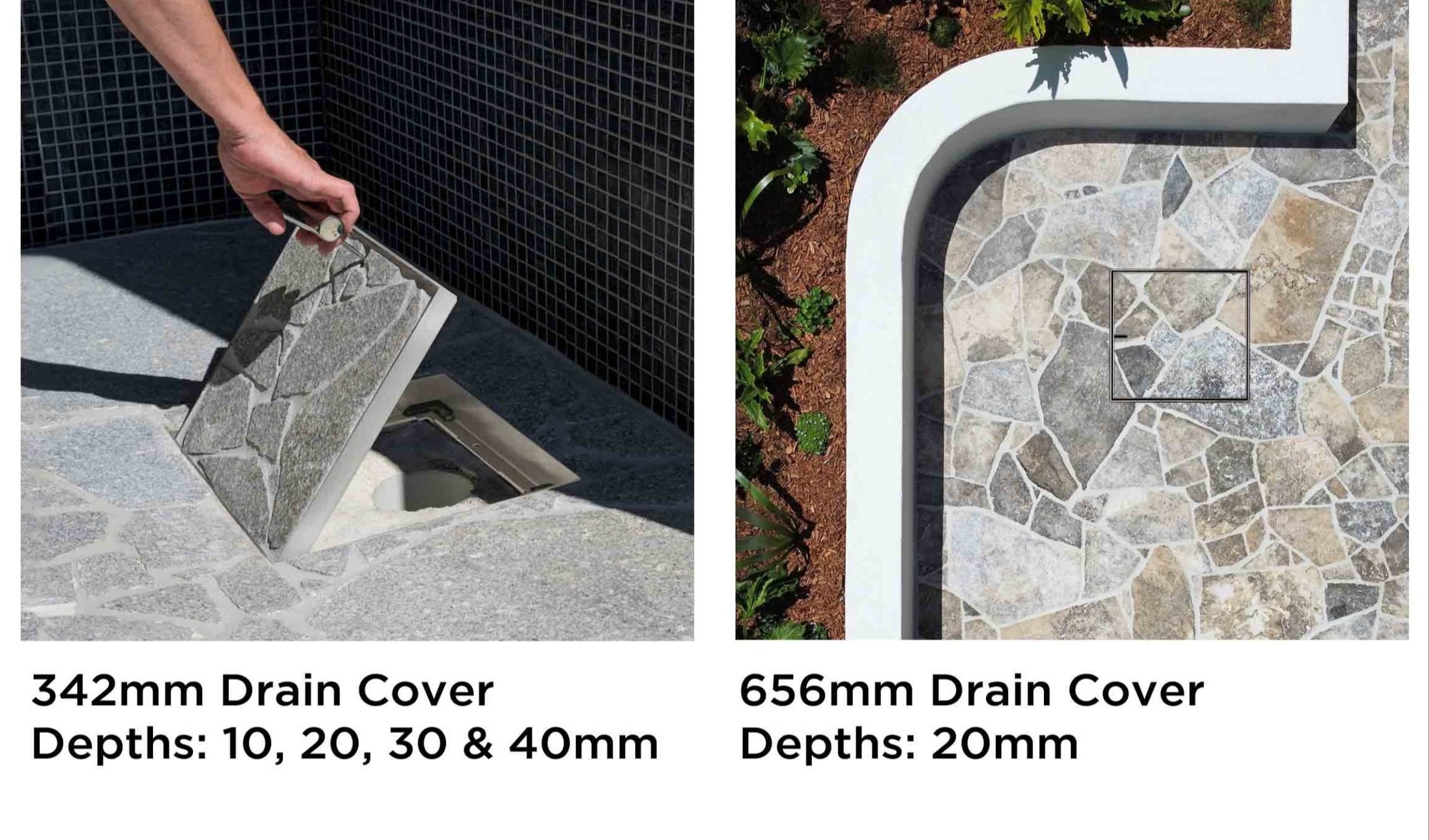

• 342mm Square Drain Cover Flow Rate

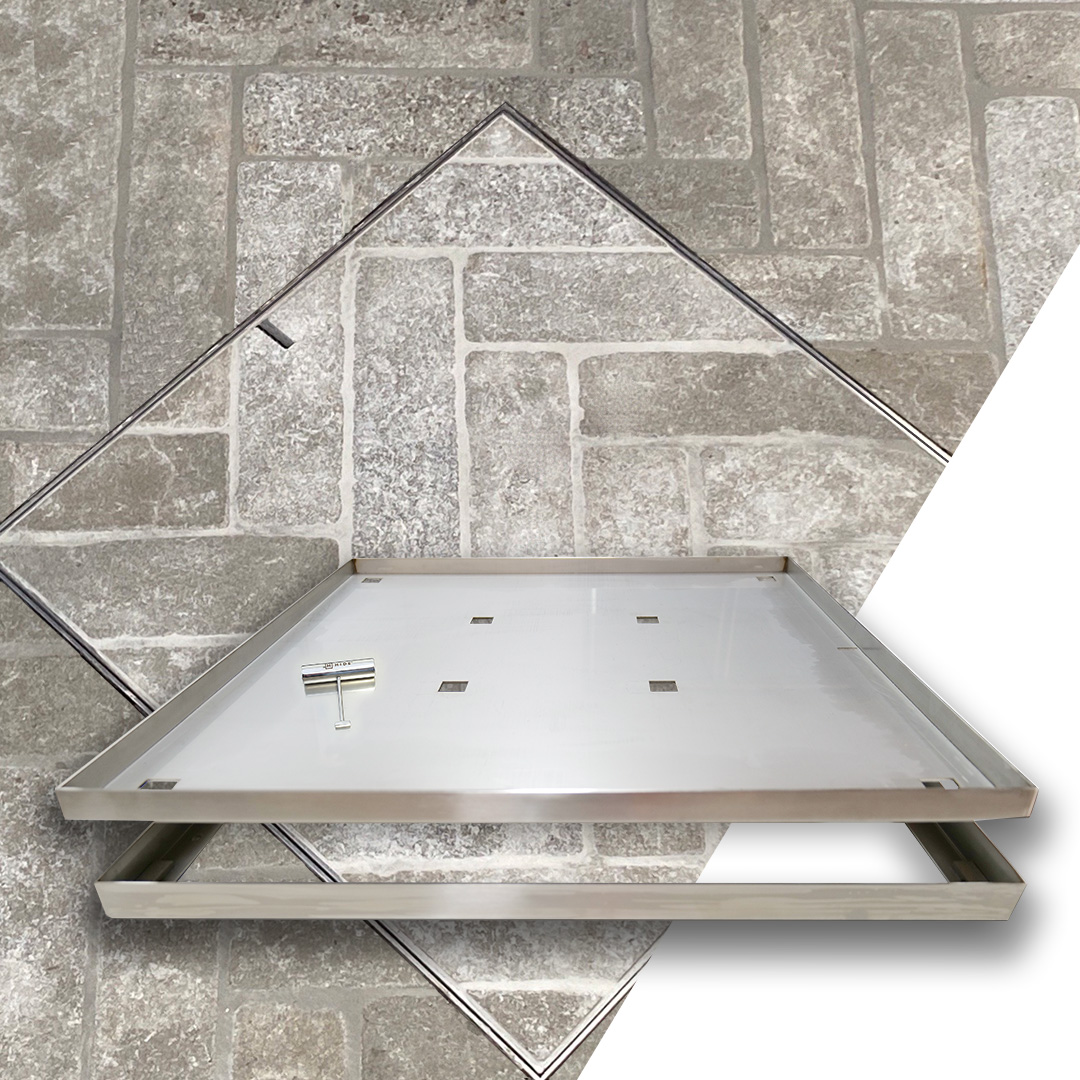

• 656mm Square Drain Cover Flow Rate

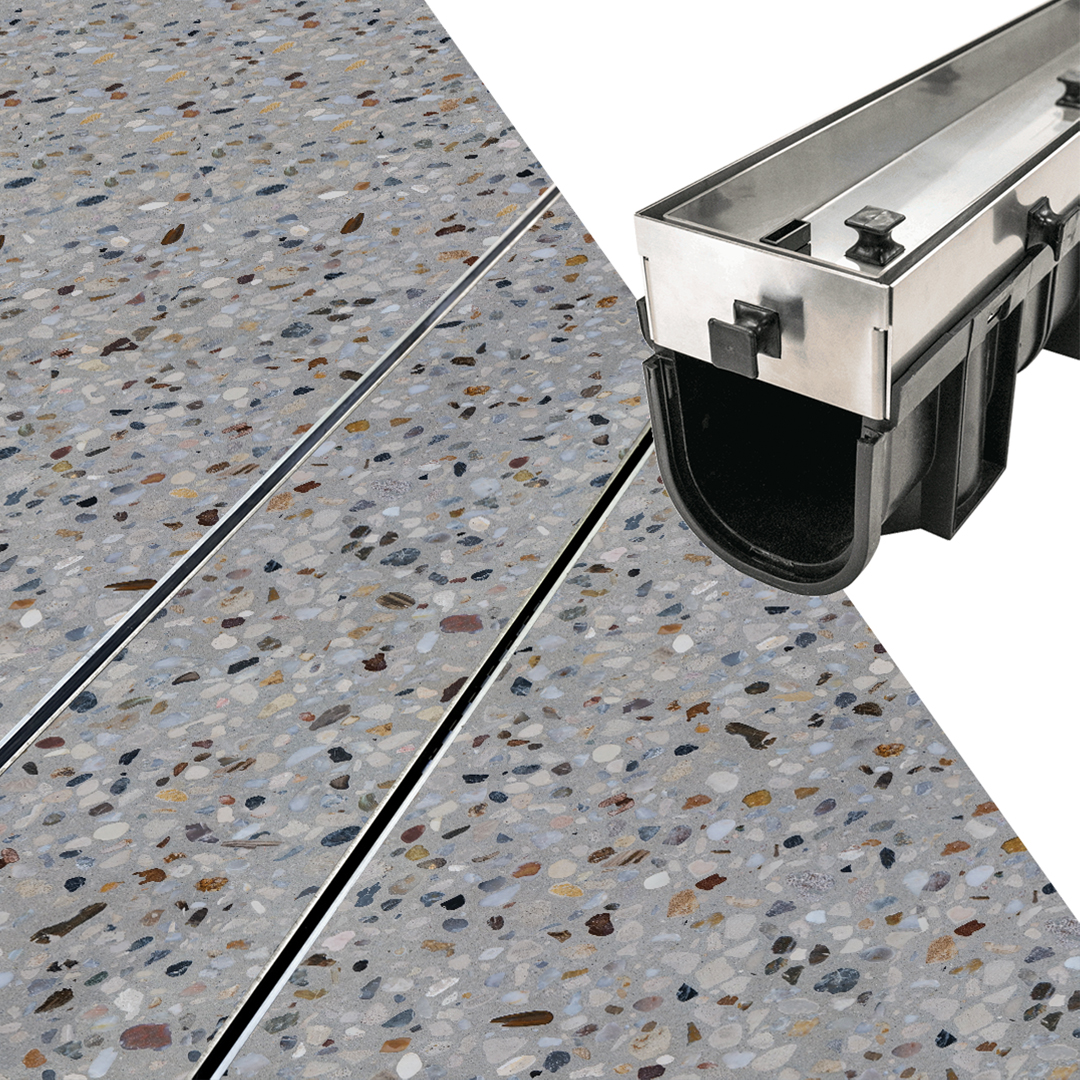

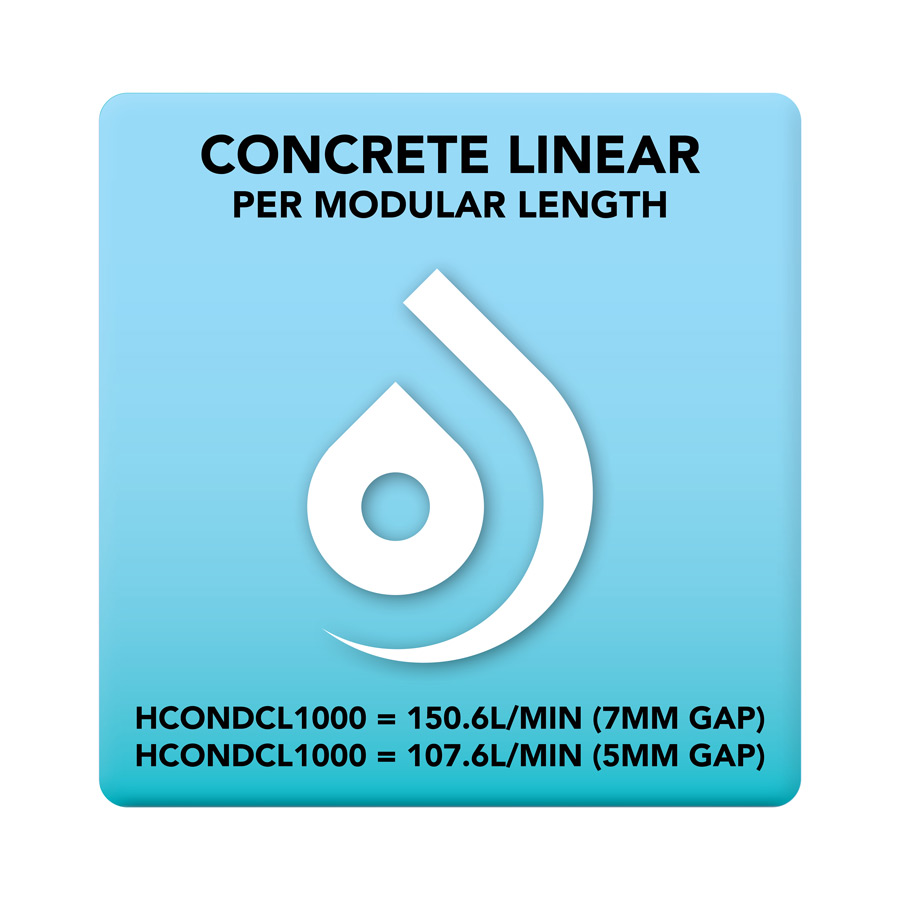

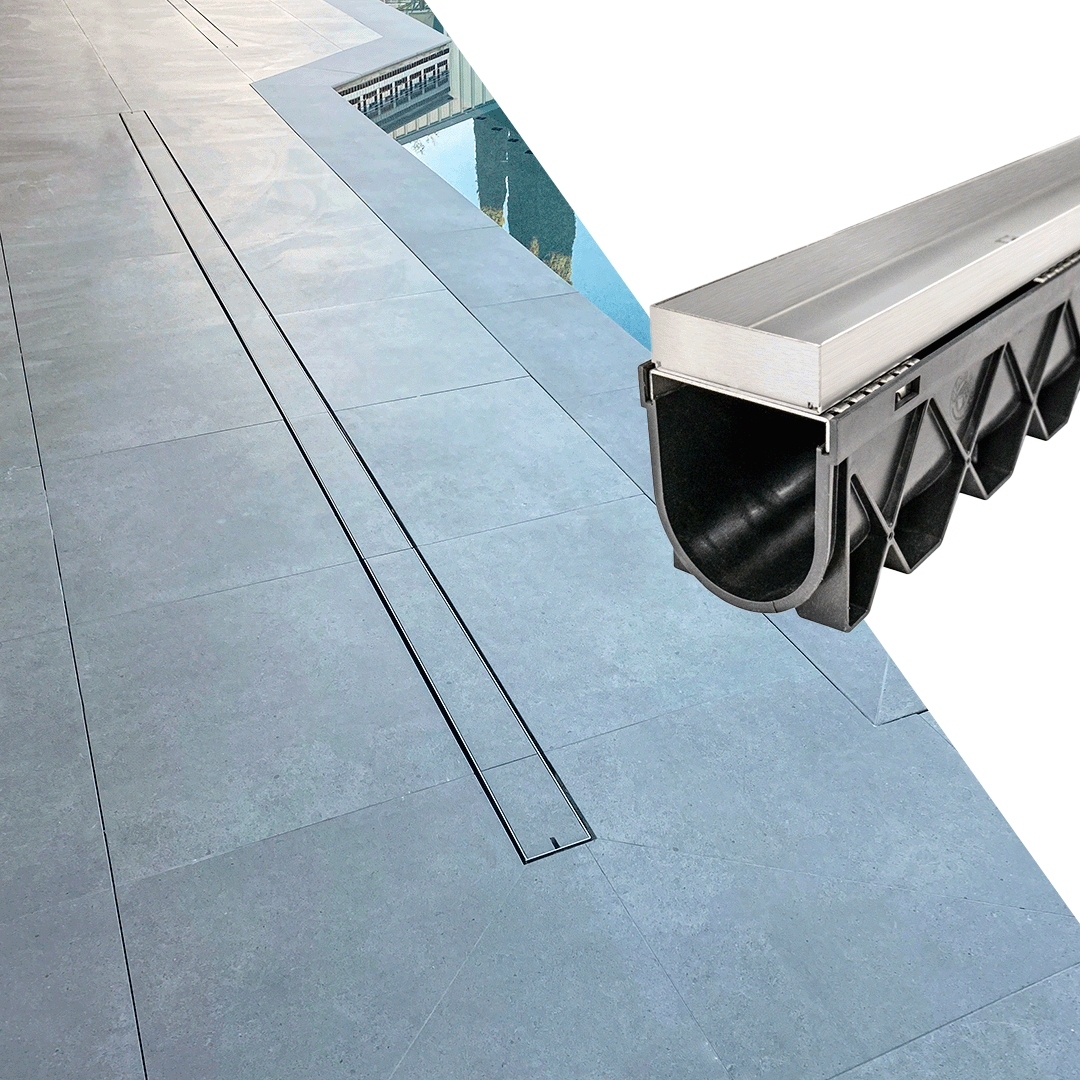

• 1000mm Concrete Linear Drain Cover Flow Rate
• 1210mm Tile Linear Drain Cover Flow Rate

Note: HIDE Drain Covers may complement Everhard or Reln pits and channels, which are not part of the HIDE Kit and are not included.

Back to HIDE Skimmer Lids Website

Hidden drainage solutions:

The specific type of drain and its application will depend on the location, purpose, and local building codes. Here are some typical applications of a HIDE Landscape Drain Cover applications:

• Patios, stairs and steps
• Balconies and rooftop terraces
• Outdoor entertainment areas
• Sports Courts and walkways
• Gardens and landscaped areas
• Pool Decks and retaining walls
• Artificial grassed courtyards
• Wet-pour concrete kits available. Click here to view

Key Features

• Australian-made and owned
• Discrete and concealed key access - you won't even notice it's there!
• 5mm clearance on all sides for optimal drainage capabilities.
• Inconspicuous locking system with HIDE's proven keyway safety access.

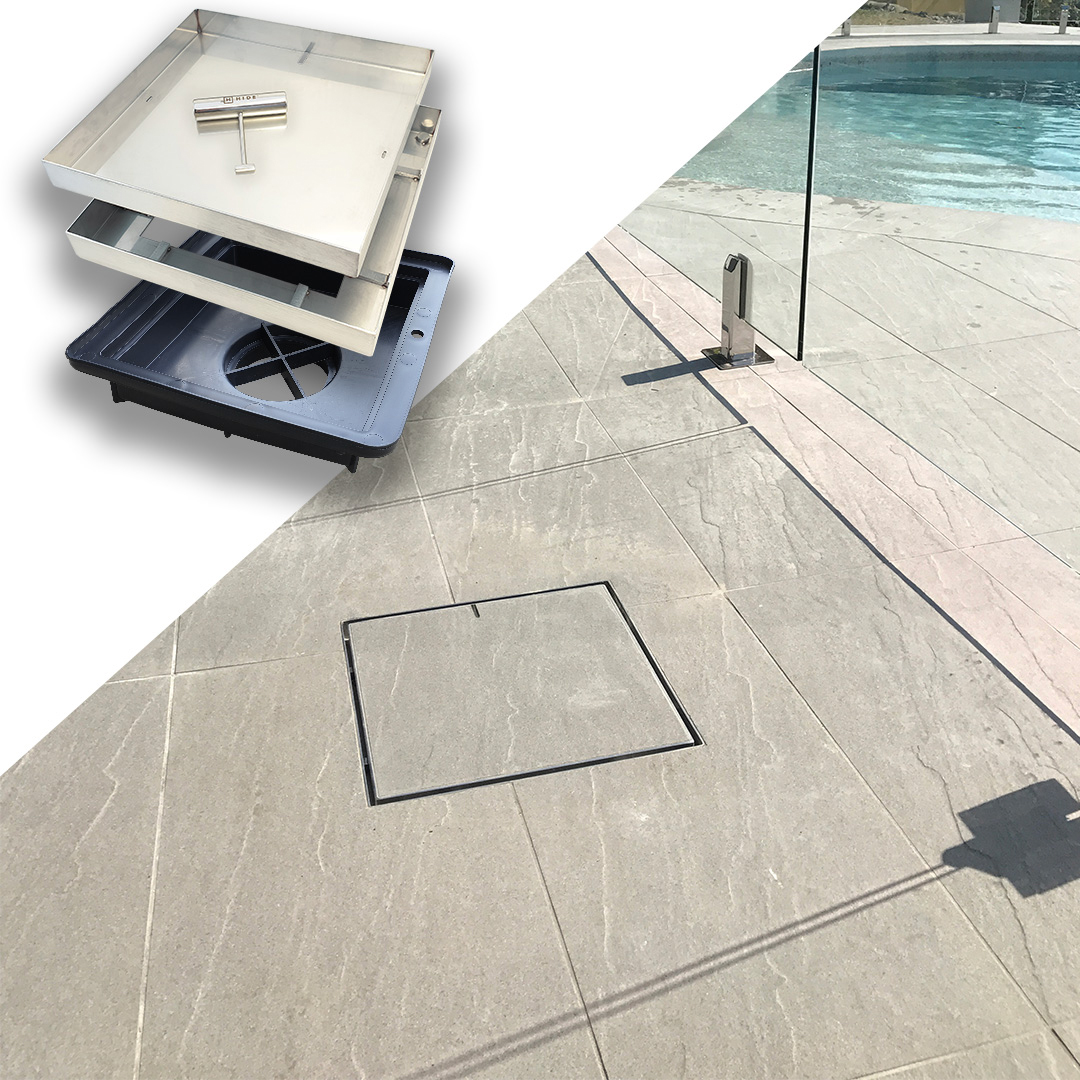

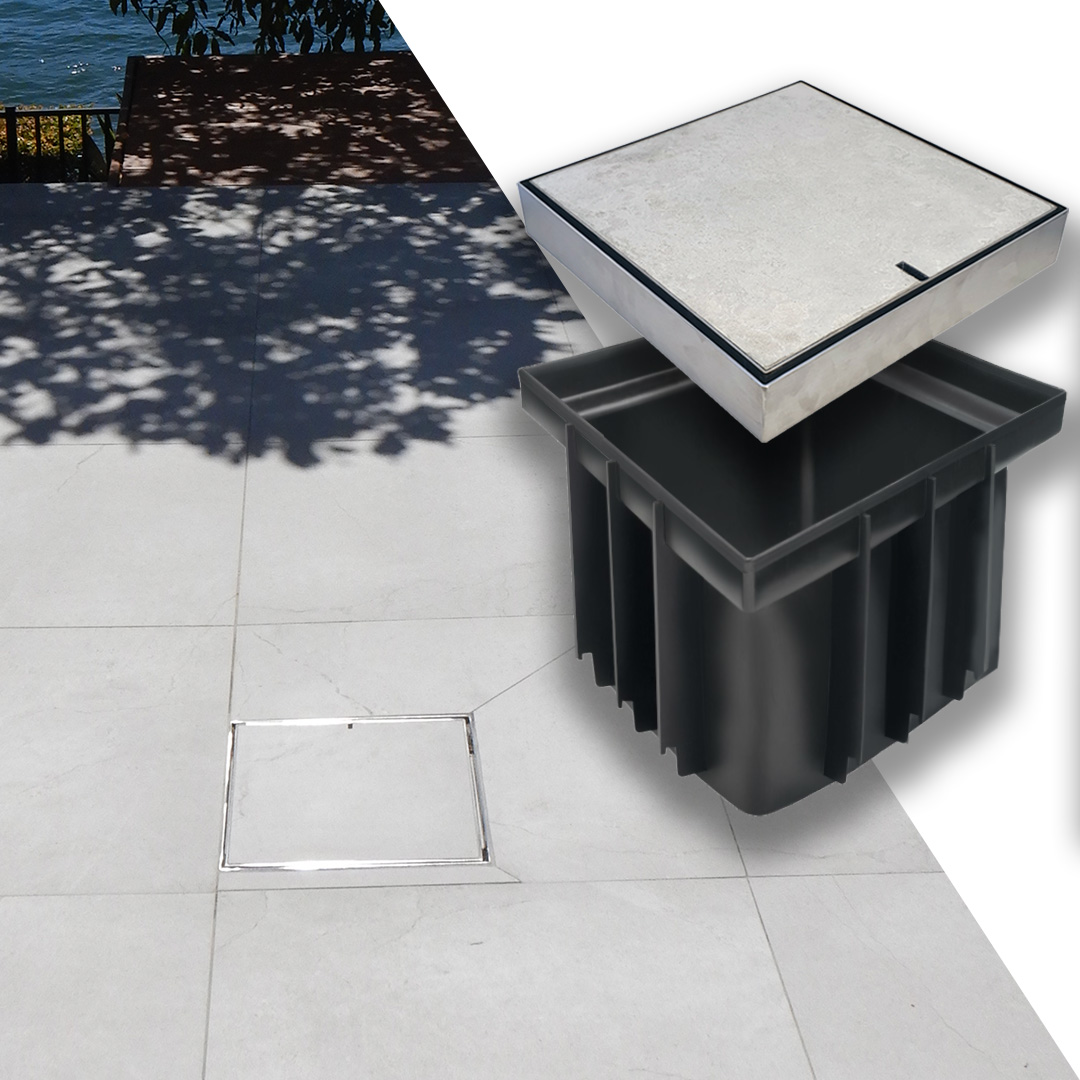

• The 342mm drain cover can be compatible with the Everhard Series 300 pit.
• The 314mm Drain Cover is compatible with the Everhard 314 Rainwater Pit.
• Concrete compatible models in popular 314mm & 342mm sizings
• 20-year stainless steel warranty (AUS).
• 10-year stainless steel warranty (USA).
• Conforms to Australian Pool Safety Standards.
• The lid cannot be lifted without the safety key.

Concrete Drain Covers

214mm, 314mm & 342mm concrete compatible Drain Covers, suitable for wet-pour concrete installations; including exposed aggregate.

Available in 2 sizes and 40mm depths for wet-pour concrete application.

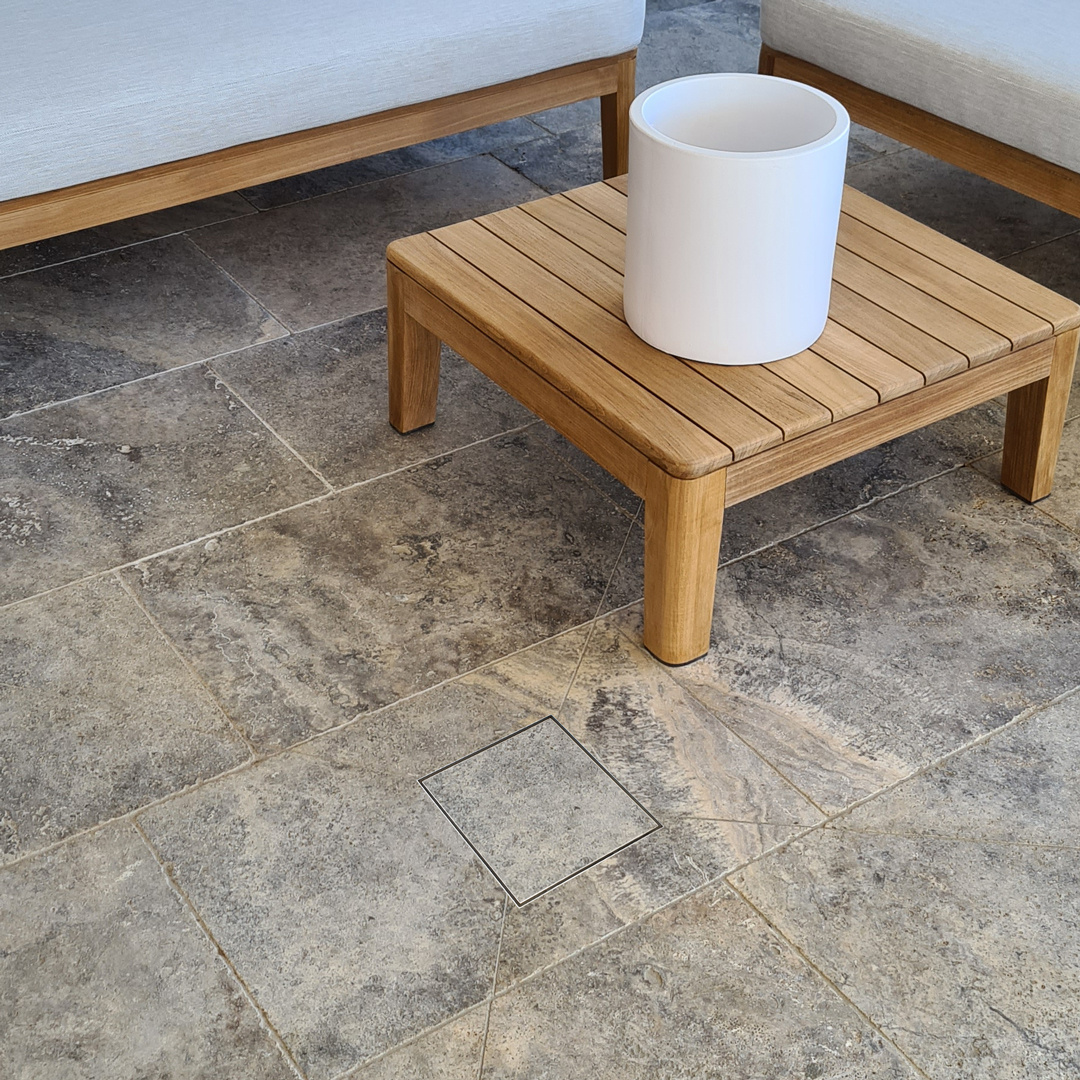

Hide any unsightly drains with HIDE Drain Covers, you won't even know it is there!

Consult your drain layer for site water flow and the most suitable sized HIDE drain cover and style.

Fill the recess with a mortar bed then push in edge protector until it fits in with its surrounds.

Looking good right?
Set out and plan the installation to suit the finished surface. It's an aesthetic thing.
