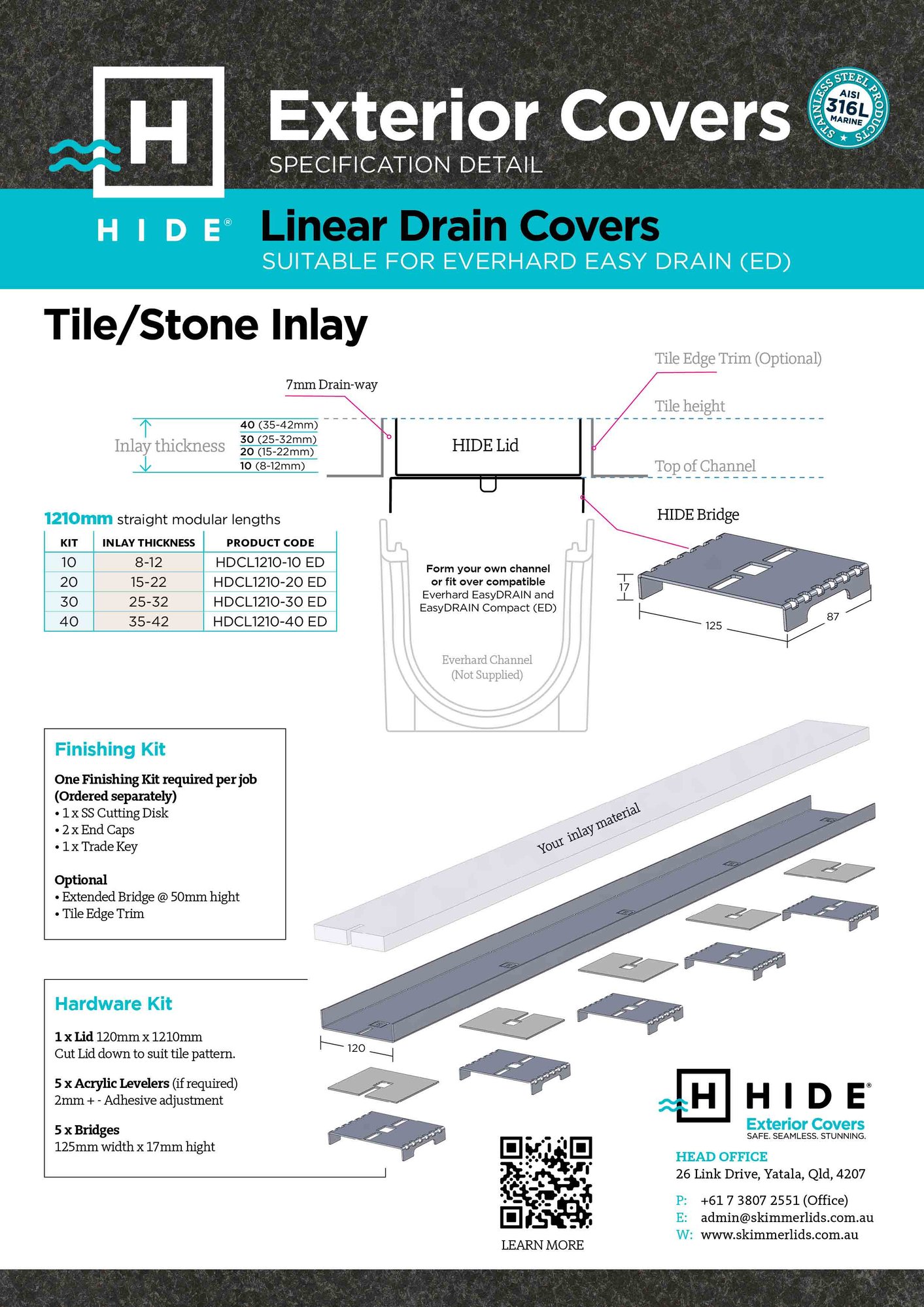

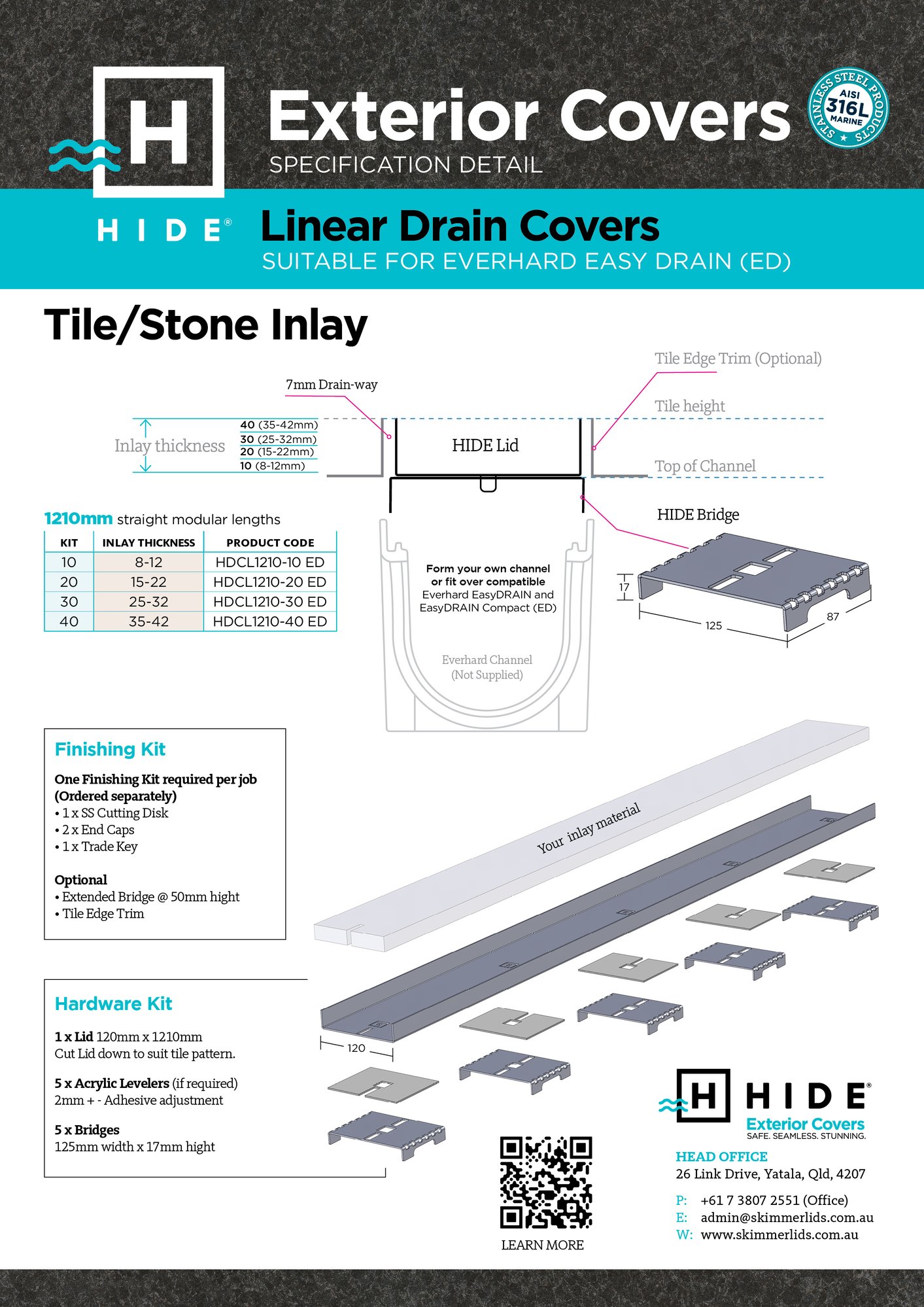

SPECIFICATIONS - STONE INLAY DRAIN COVERS
EXTERNAL - TILE INSERT - LINEAR MODULAR DRAIN COVERS

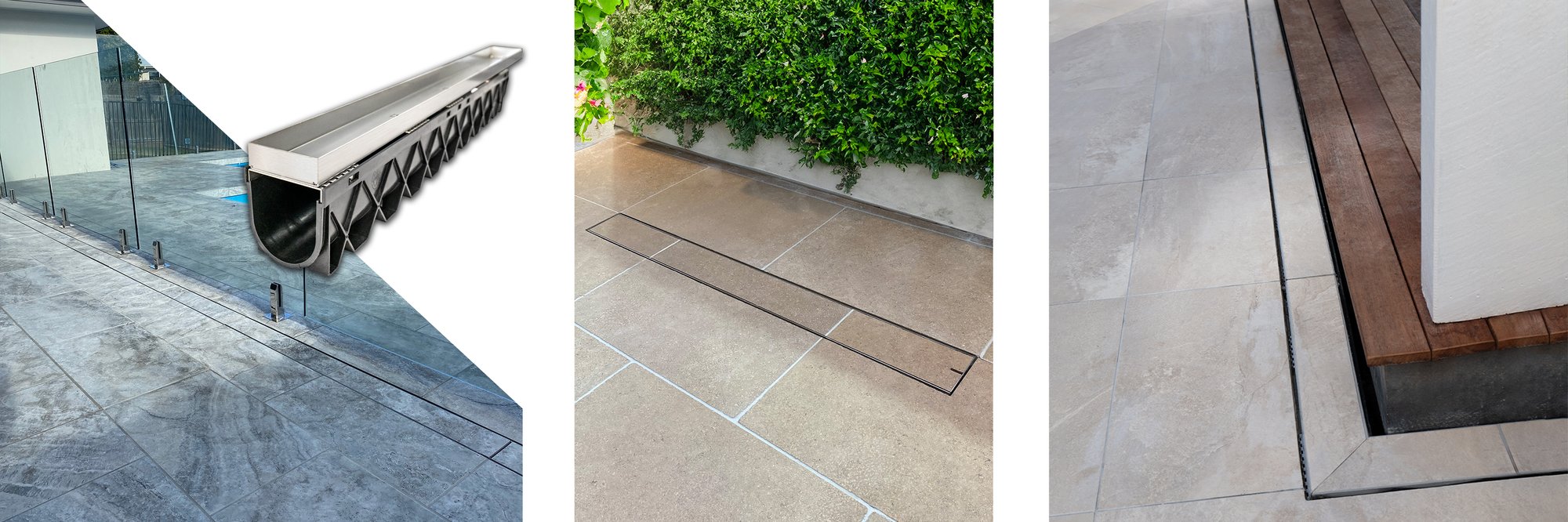

Inconspicuous surface drainage!
A modern solution to creating the perfect outdoor living space without drain grates in sight.
Modular Tile Inlays at 1210mm in length. Available in 4 popular depths and two widths.
Product Features:
- 316 Stainless steel quality and long-term durability.
- The cover is compatible with popular exterior drain channels, all available in different depths and lengths.
- Flexibility in installation; adjustable in height and gradient.
- HIDE Tile Inlay Covers suit exterior stone thicknesses of up to 42mm.
- 40mm Tile Linear Drain Covers only compatible with Everhard Channel.
- Discreet with minimum hardware exposure, only 2mm Stainless Steel at surface level.
- Factory cut & prefabricated 2.4m corner kits.
- Butting 1210mm modular lids to cover any length of the drainage channel.
- No grate to collect surface sediment, and it is easy to clean and remove.
- Deep channel options allow limited fall requirements
- Most external stone thicknesses are compatible with the HIDE cover system.
- Tile edge trim and end caps are available for an enclosed finish.
- Retrofit options.
- Earthing-free insulation.
Please note black everhard/reln channel for illustration purposes only and must be sourced separately.

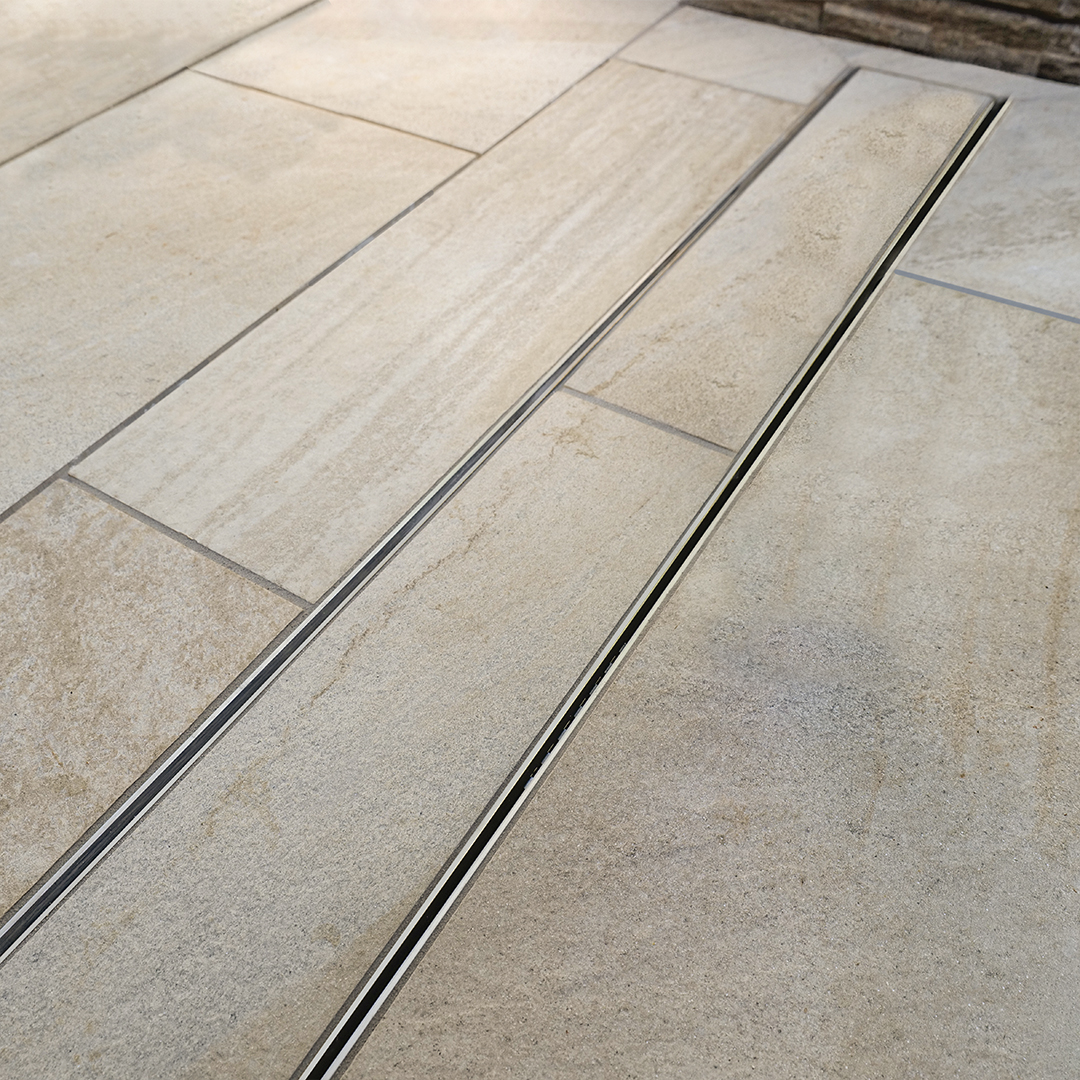

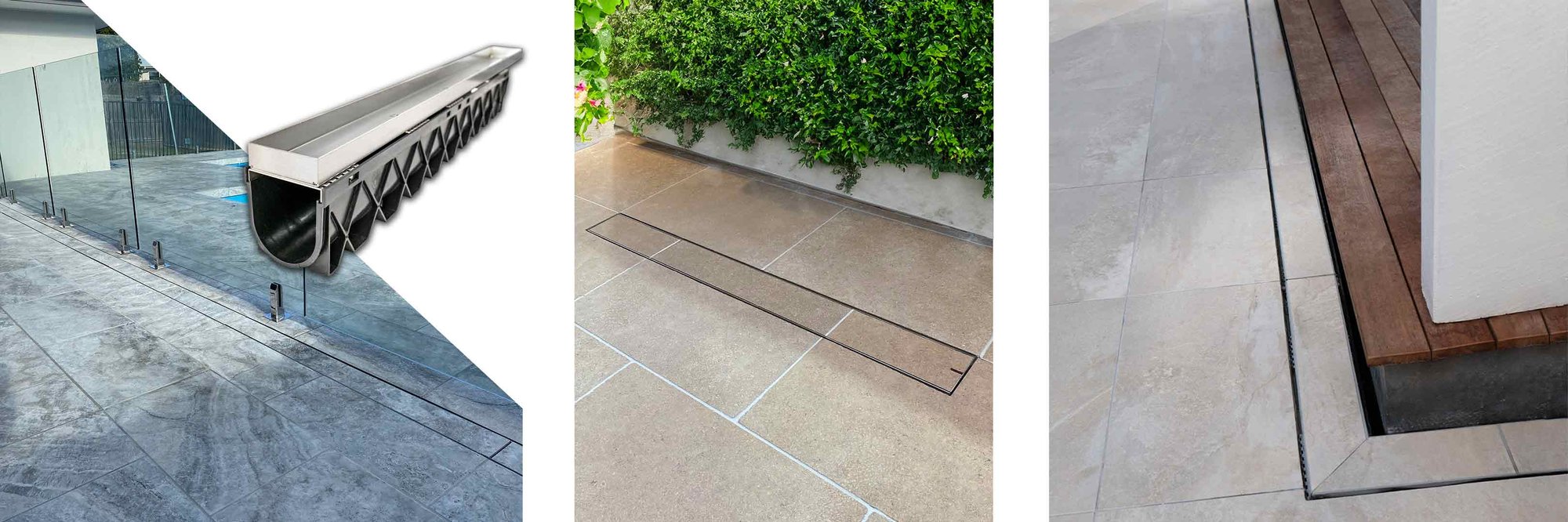

Discreet & Durable
HIDE's Linear Drain Covers have been created to be hidden out of view underneath the tile, creating a water collection and flow away system with only 2mm of exposed channel tracking.
316 stainless steel is known for its exceptional durability and corrosion resistance; it ensures long-lasting performance.
Function & Form
HIDE has created this first-of-its-kind exterior linear drain cover to eliminate other bulky drainage solutions by creating a product that is both functional and slimline in design.
Versatile
Factory prefabricated 2.4m corner kits ensure a quick and efficient installation. Through their ability to be cut down to any desirable length, you can now effortlessly match grout lines and tile patterns to each end of the HIDE Cover.
GETTING TO KNOW THE OPTIONS
HIDE “ED” Covers are compatible with Everhard industries, standard Easy Drain channel or ED Compact drain.

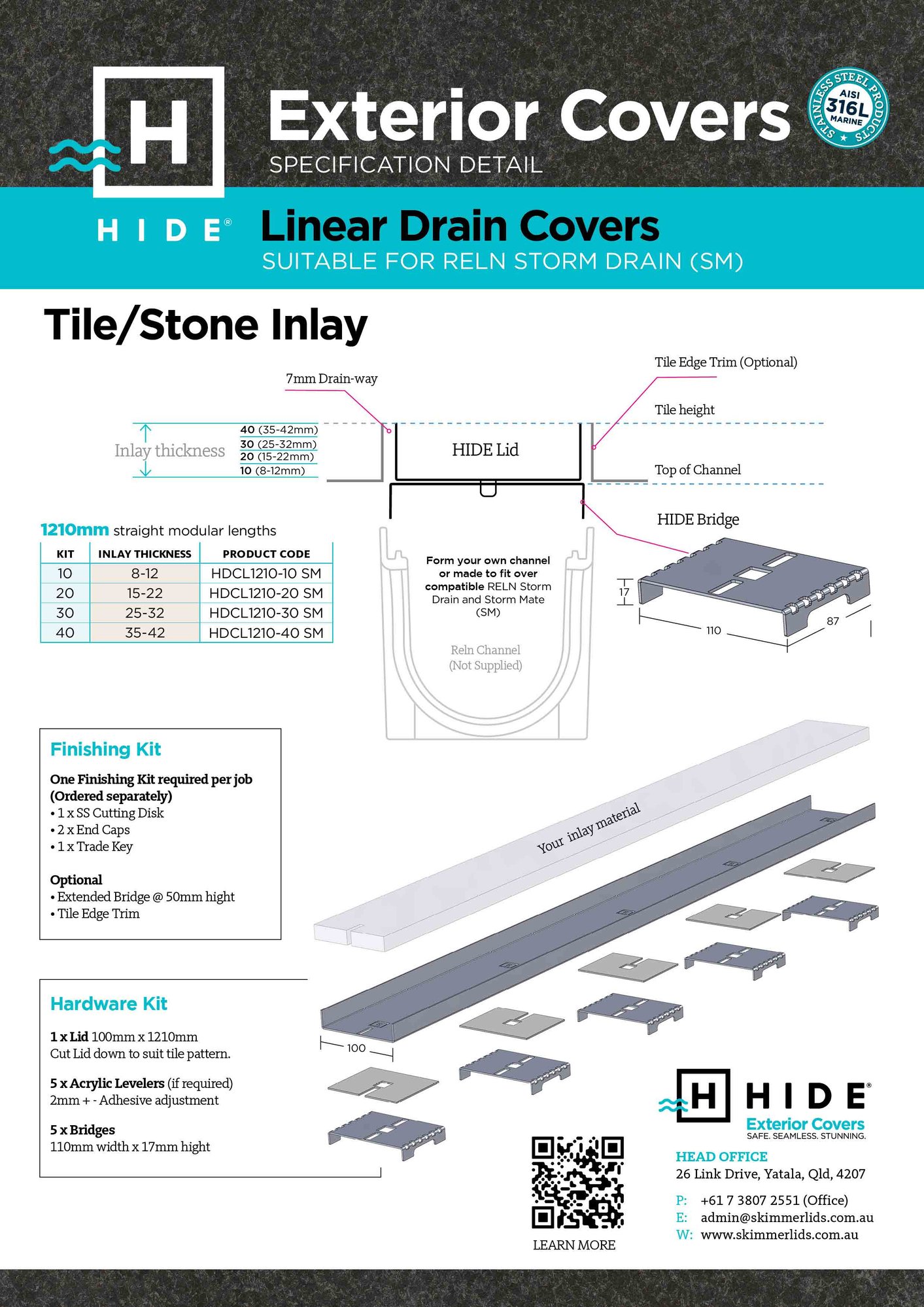

HIDE “SM” Covers are compatible with Reln; Storm Drain, and Reln straight-line Storm Mate.
HIDE 40mm Linear Drain Cover is compatible only with Everhard Channel.
Create your own water channel in the slab, width and depth to support the selected HIDE Bridge and drainage requirements of the project.
Hide standard bridges are in every kit; however, Extended Height Bridges are also available separately in packs of 5, allowing for retrofitting, levelling beds and custom-formed channels.
The HIDE Bridge is independent of the Cover and the Channel; this allows flexibility or adjustment between the channel and cover height.
All HIDE bridges are adjustable in height:
- Cut down the legs in the marked 5mm increments.
- Fix the supplied Height levellers or your own ceramic packers between HIDE cover and the bridges for extended height options.
Cover End Caps are a finishing option and are available as an extra to allow modular installation.
Corner Drain layout is made easy with no onsite cutting as it is fully fabricated at the HIDE factory.
The supplied stainless steel cutting disc allows the HIDE Cover to be cut down to match tile size or grout lines.
GETTING TO KNOW THE OPTIONS
Receive HIDE Drain Cover Flow Rate Data directly to your inbox.
Tile Inlay - Linear Drain Cover
The image above shows a black channel which must be sourced separately; not included in the HIDE kit.
This image shows the stainless steel HIDE 1210mm SM Cover, 30mm stone depth inlay with end caps & 4 bridges sitting above a Reln Storm Drain channel.
Compatible with your standard channel

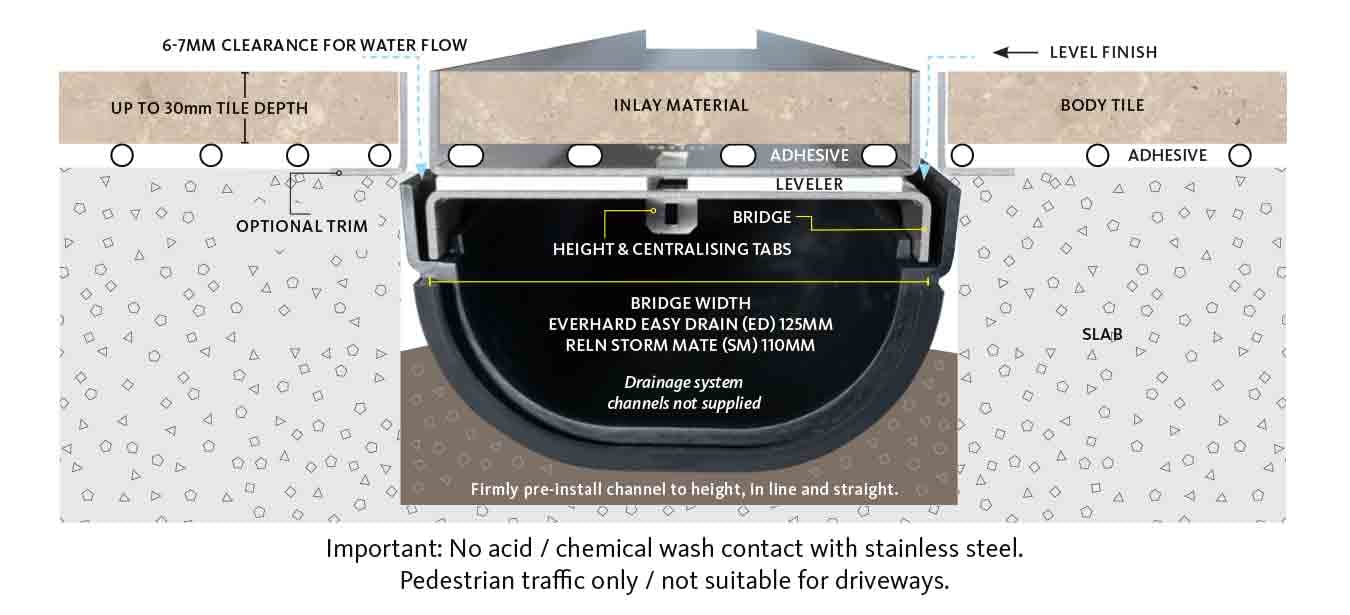

This image showcases the end view of a Hide 1210mm ED cover, one HIDE white leveller sits between the bridge and cover; all placed within the Everhard Easy Drain Compact Channel.
Note that the HIDE Cover Centralising tab is positioned into the bridge to minimise movement of the Cover.
Black everhard/reln channel for illustration purposes only and must be sourced separately.

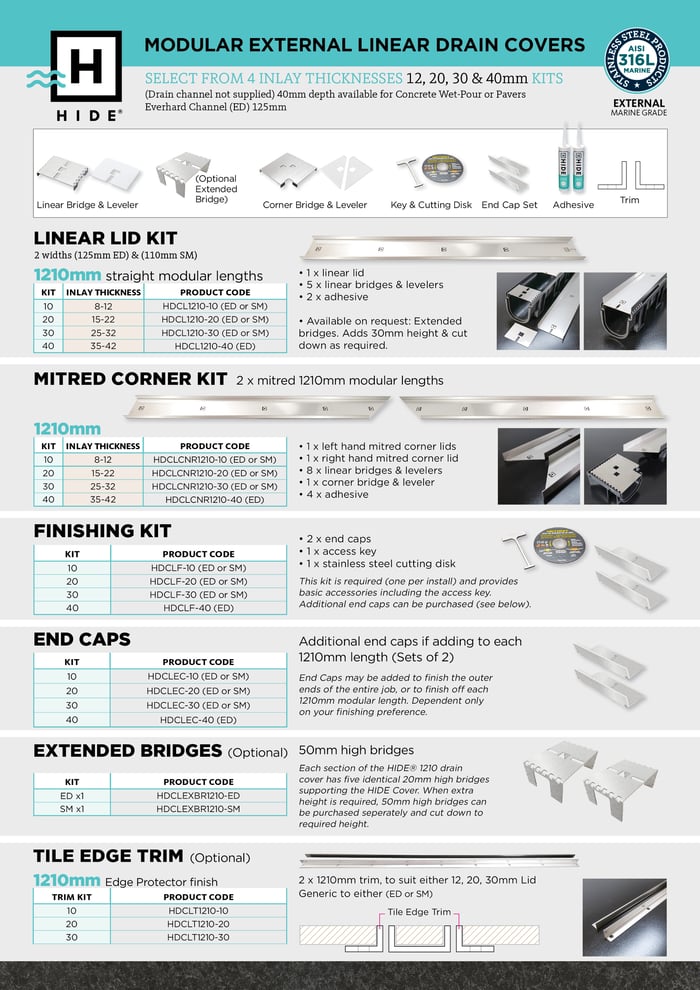

Tile Inlay Components
Linear Kit
Linear tray, bridges and adhesive.
Finishing Kit
One finishing kit required per project.
Mitred Corner Kit
Stainless steel mitred corner cover pack.
Contains 2 x 1210mm mitred lengths with additional corner bridge which fits the compatible plastic channel corner elbow.
(shown as illustration only)
Extended Bridge
Product Codes
Safe practices and care required
NOTE:
- Suitable for PEDESTRIAN TRAFFIC only.
- No ACID / CHEMICAL WASH contact by the contractor or homeowner ever.
Consider and plan installation before the project commences.
Before cutting or gluing the cover insert, consider customising the tile insert layout to suit site specifications.

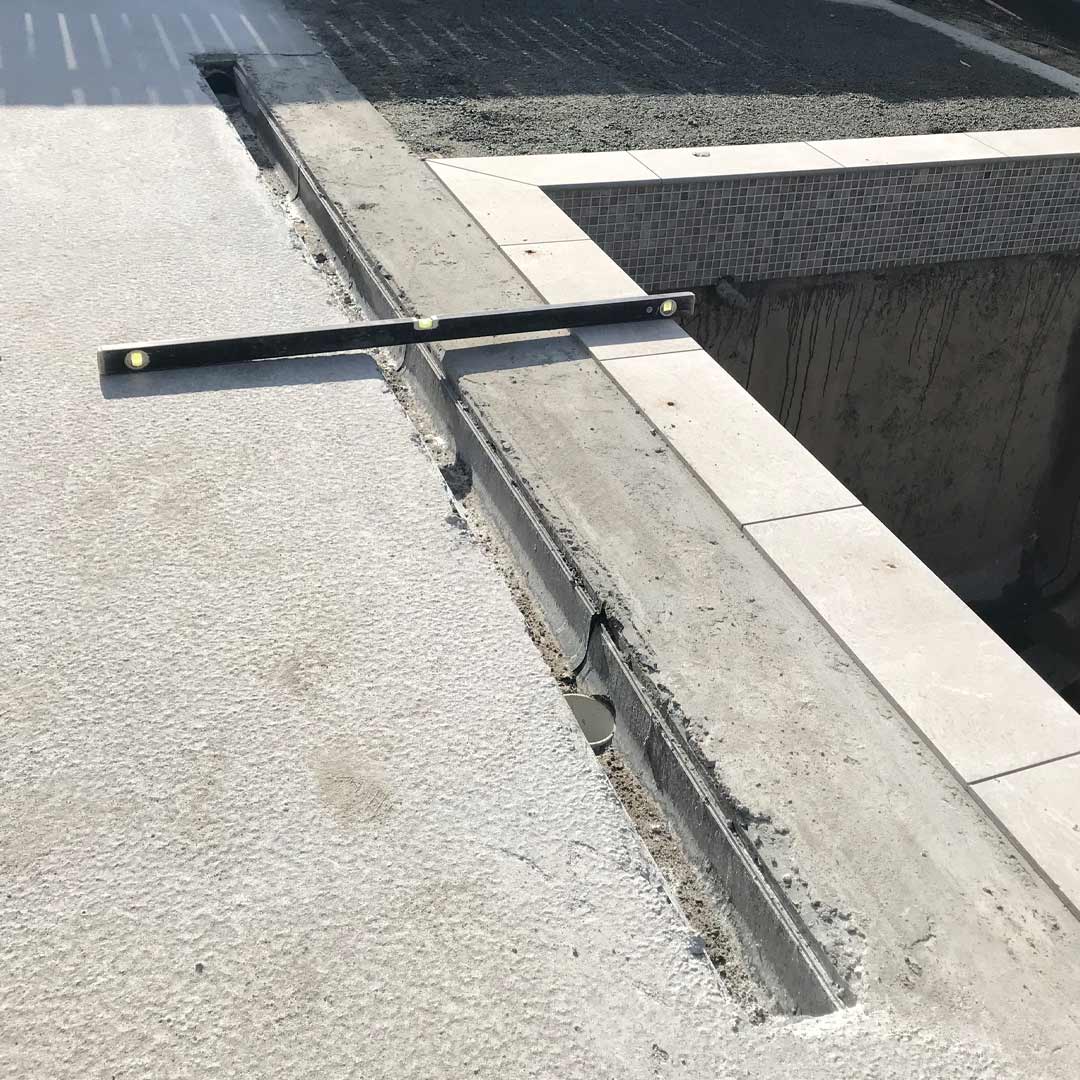

Align the channel with the supplied plastic grate inserted to set the width during the slab pour.

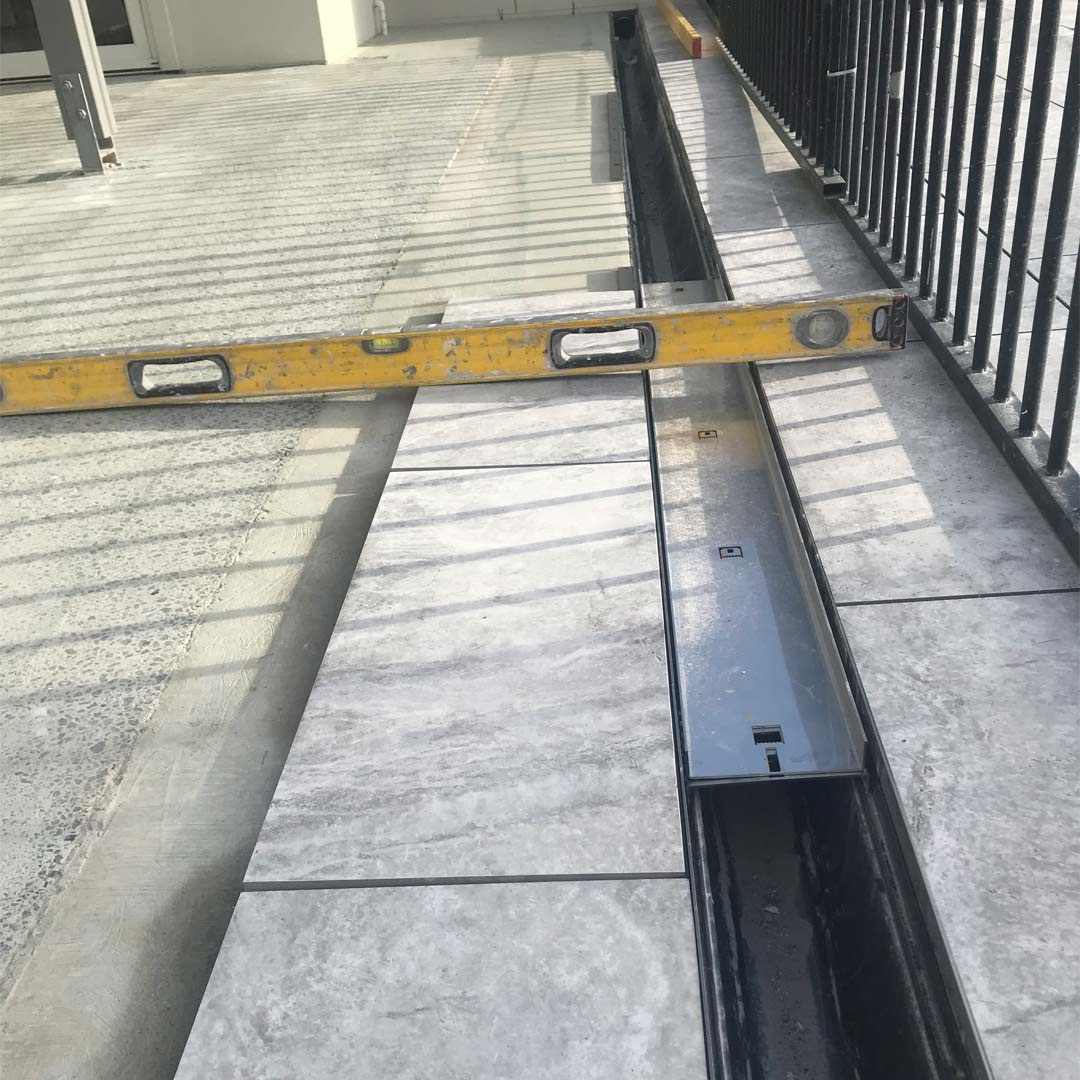

Looking good right?
Set out and plan the installation to suit the finished surface. It's an aesthetic thing.
